Kcn-8025 Automatic Bending Machine

Product Description

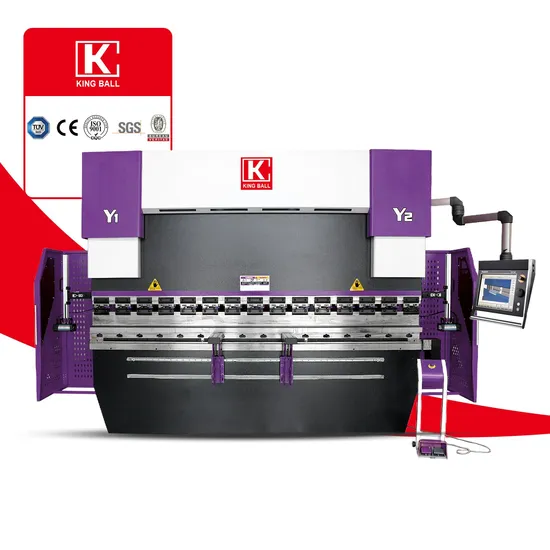

KCN-8025 automatic bending machine
Model:WC67Y-200/3200
2 Axis CNC Control(X, Y,)
X: Backgauge front and back; Y: Ram stroke
W: Worktable crowning (optional)
Main functions and features
1.Overall welded and processed structure.
2.High mechanical strength and strong rigidity.
3.Ram stroke hydraulic approaching downward, stable and reliable.
4.E21 can control the movement of ram stroke and backgauge, achieving efficient and highly precise positioning.
5.Wedge compensation on top punch clamping.
6.Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision.
7.2 Sliding front sheet support arms mounted onto T slot of the bed.
8.Solid one block four face multi V die.
9.Approved stable and reliable hydraulics.
10.Stop fingers with milscale for plate bending machine.
Technical Parameters

NO.	Item		Parameter	Unit
1	Nominal pressure		2000	KN
2	Table length		3200	mm
3	Max.Slider stroke		220	mm
4	Max.Shut height		480	mm
5	Between columns		2600	mm
6	Throat depth		350	mm
7	Main motor power		15	KW
8	Down Speed		100	mm/s
9	Pressing Speed		8	mm/s
10	Return Speed		90	mm/s
11	Control axis		X+Y	/
12	X axis Stroke		500	mm
13	Backgauge Stoppers		2	/
	Overall dimension	L	3700	mm
14		W	1920	mm
		H	2780	mm
15	Machine weight		12500	kg

Backgauge with ball screw and round guide
Multifunction adjustment of the tightening wheel
Siemens main motor German brand.
Sunny pump USA brand.
Rexroth valve German brand.
European style quick release clamping
The guideway use the brass, wear-resisting, long service life.
Pedal switch with emergency stop, safe operation, the base with rollers easy to move.
The torsion bar is synchronized with the gear rack. ram down fast, easy to adjust the two sides of the synchronization. The connector use wear - resistant brass.
The stopper up and down by manual, move left and right on two linear guides,
Main configuration

Name	Producer
CNC controller	E21 Estun China Brand
Main motor	Siemens Germany brand
Electrical components	Schneider France brand
Gear pump	Sunny USA brand
Seal ring	NOK Japan brand
Hydraulic system	Boschrexroth Germany brand
Ball screw ,Linear guide	HIWIN Taiwan brand
Tubing connector	EMB Germany Brand

E21 NC controller
Backgauge and block control
Control for general AC motors, frequency inverter Intelligent positioning
Stock counter Holding/decompression time setting
Program memory of up to 40 programs Up to 25 steps per program
One side positioning Retract function
One key backup/restore of parameters mm/inch
Chinese /English
The standard accessories are in the below: Anchor bolt Hex nut Seal ring Gasket Grease gun Allen wrench Foot switch Front support arms Electrical box key, control panel key Operation manuals

---
