Corrugated Paperboard A4 A5 A6 Notebook Lamination Paper Sheets Die Cutter Corrugated Cardboard Heated Die Cutting and Creasing Machine

Product Description

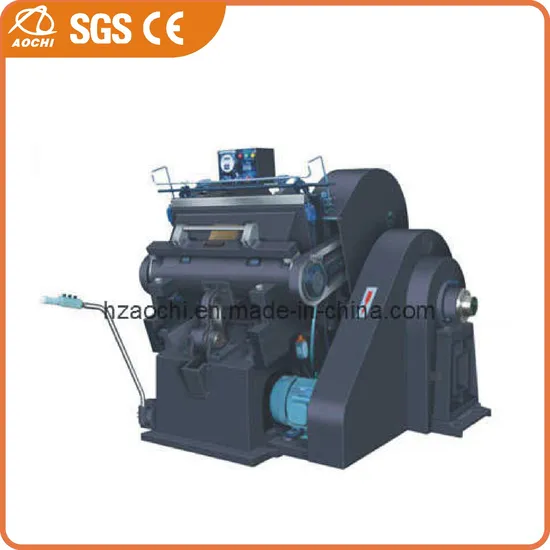

Die Cutting & Creasing Machine (ML-750/930/1040/1100) with CE
Product Description Application:
The die cutting and creasing machines is special equipments of die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing, packaging, decoration and plastic industries' machines have been acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
Features:
1. Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-frietion and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-ranking material for machine body.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. With functions of single, continuous and opening dweel operation, dwell range is adjustable.
6. Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7. Safety system is reliable.
Product Parameters

Model	Inner Chase Size	Speed	Max. Rule Length	Motor Power	Machine Weight	Packing(Overall) Dimensions
ML750	750×520mm	25	<15m	2.2kw	2000kg	1650×1400×1500mm
ML930	930×670mm	23±3	<25m	4kw	3000kg	1750×1900×1700mm
ML1040	1040×720mm	22±2	<28m	4kw	3500kg	2000×2010×1900mm
ML1100A	1100×800mm	20±2	<35m	7.5kw	5000kg	2000×2010×1900mm
ML1100	1100×800mm	20±2	<30m	5.5kw	4500kg	2020×2010×1900mm
ML1200	1200×820mm	20±2	<32m	5.5kw	5000kg	2020×2010×1950mm
ML1300	1300×920mm	15±2	<40m	7.5kw	6000kg	2600×2100×1950mm
ML1400	1400×1000mm	15±2	<45m	7.5kw	6500kg	2600×2100×1950mm
ML1500	1500×1050mm	14±2	<45m	7.5kw	7000kg	2600×2100×1950mm
ML1500G	1500×1150mm	14±2	<45m	7.5kw	7300kg	2650×2100×2050mm
ML1600	1600×1250mm	13±2	<50m	11kw	11500kg	2850×2250×2100mm
ML1800	1800×1280mm	13±2	<60m	15kw	13000kg	3150×2250×2250mm
ML1800G	1800×1400mm	13±2	<60m	15kw	14000kg	3150×2250×2300mm
ML2000	2000×1400mm	12±2	<65m	15kw	15500kg	3150×2250×2300mm
ML2200	2200×1400mm	12±2	<68m	18kw	16500kg	3300×2250×2300mm
ML2500	2500×1500mm	12±2	<70m	22kw	18500kg	3600×2250×2500mm
ML2600	2600×1500mm	12±2	<70m	22kw	20000kg	3700×2250×2500mm
ML2800	2800×1500mm	12±2	<75m	22kw	23000kg	3900×2300×2800mm
ML3000	3000×1600mm	12±2	<80m	30kw	35000kg	4200×2300×3000mm
