52 Inches Single Carriage Single System Fit-152D-12g

Product Description

52 inches single carriage single system

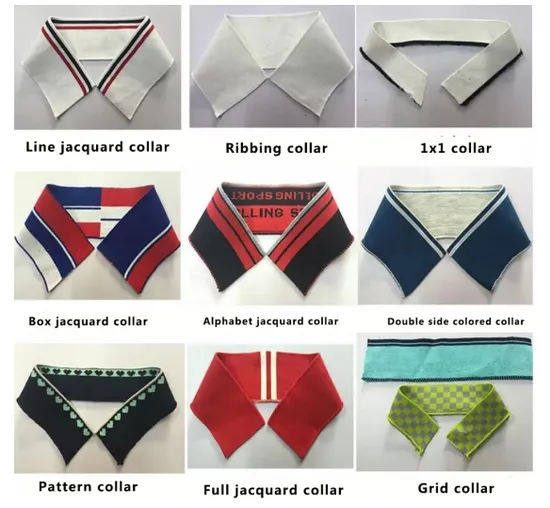

Computerized collar machine adopts high technology computer chip, high quality metal needle plate, advanced technology and stable performance. The machine is mainly used for the processing of woolen sweaters and accessories, that is, collar, cuff, door and rib, etc. it is suitable for silk, cotton, wool, polyester, blending and other raw materials. It can be woven like square, straight strip, bar, rib, full sky star, fish scale, four flat, single side and other regular patterns.

Machine	FIT-152D(52 inches single carriage single system)
Gauge	12G	14G	16G
Needles	624Needles	728Needles	832Needles
Main function	Knit basic single or double jersey,irregular multi-colors jacquard,intarsia,cables,pointel fabric.suitable for silk,chemical fiber,wool,arcylic fiber,mixed yarn,cotton yarn to knit the sweater,collar,placket,hem,cuff,scarf,pocket,pants and other knitting fabric
Knitting system	Single carriage single system or double systems,with digital technology ,fulfil patterns of transfer, pointel, tuck,intarsia, jacquard, double jersery plain, apparent shape, hidden shape and other regular patter knitting functions.
Knitting speed	Max knitting speed 1.3m.s.32 speed sections controlled by servo motor.
Stitch density	64density selection range 0-650 controlled by stepping motor,electrical fine adjust technology.
Dynamic stitch	Deviced by dynamic stitch technology,achieve the variety stitches in one course and variety density in one course to improve knitting efficiency and variety
Rib transfer	Free transfer double ways between front and back needle at same time and no limitation by carrige movement.transfer and knit individually.
Sinker	Stepping motor control the adjustable sinker to achieve the multiple shaping and widening function.
Single rackings	Motor drive racking ,achieve 1/2 or 1/4 needle racking at any position
High speed return	Turn back joint controlled by stepping motor,increase the carriage return speed and productivity as sell as avoid the worn of the carriage rail.
Roller device	Deviced with up-position roller.24 sections of automatic control with subsection adjustment.
Yarn roller	Positive yarn roller precisely control the tension of the yarn to gurantee the fabric quality
Yarn carrier	2*6Yarn carriers deviced on 3 double sides lead rail
Safety	Full machine cover to reduce the noise and urgent button power off device and indicator to guarantee the safety
Auto stop	Machine auto stop when yarn break,yarn joint stuck,fabric roll inside ,needle hit ,overload program error and program end happens
Needle detector	Detect the floating needle to avoid the needle hit this deviced with smart program and infrared sensor only detect the knitting area to avoid the miss alarming
Computer system	LCD monitor,touch screen,graphical interface,USB and net input,1GB RAM for big file storage.monitor,working data ,stitch data optical and adjustable during production for convenient operation.program system and machine computer system easy to updated and support cnt/hcd/001pattern file.multiple system language operation includes Chinese English and other languages.
File input	USB or NET
Power off memory	Deviced advanced CMOS technology ,when power off happen the knitting data and file is saved for restart knitting
Net connection	High speed Ethernet,maximum connect 254 machines for file input to fulfil monitor and data sharing.
Dimension	Single system L 2400mm *W 830mm *H 1500mm
Weight	Single system 400kg
Power	Voltage :AC 220V frequency :50Hz/60Hz power Single system 500w

BE ATTENTION:
1.Above price are FOB Ningbo or Shanghai port,China,to other ports for example Guangzhou,should be plug domestic freight cost bearing the buyers.
2.All price above are complete set price,match with standard table&standing as below.
