Biodegradable PLA Pbat Polyethylene Polythene PE HDPE Plastic Extruder Film Blowing Machine Price

Product Description

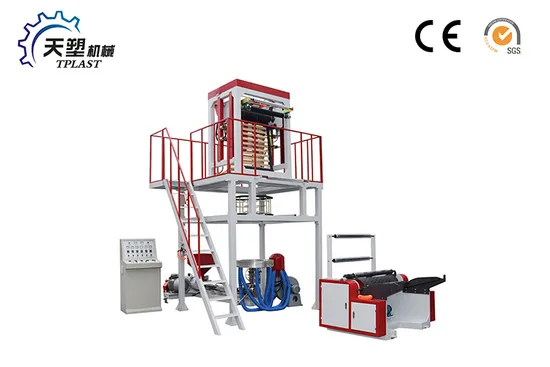

Machine Introduction
Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed
in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like
low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).
It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Machine Advantages
1, We use stronger steel plate for machine body, which make machine more stable
2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials, it is very hard. Bimetal Materials Taiwan Quality
3, Hard surface gearbox, the life can be more 10 years. GuoMao Brand
4, Motor with CE standard, more 10 years life, Siemens Brand.
5, Electric parts is CHINT, best supplier in China.
6, Easy to operate and one worker can run 3 sets
7, Temperautre Controller: Omron Brand
8, Inverter: LG Brand
9, Ceramic Heater: Heating faster and Keep warm longer
Machine Parameters

Model	SJ-50/HMB600	SJ-55/HMB800	SJ-60/HMB1000	SJ-65/HMB1200
Diameter of Screw	Φ50	Φ55	Φ60	Φ65
Max. Width of Folded Film(mm)	200-600	300-800	400-1000	600-1200
Single-face Thickness of Film(mm)	0.006-0.10	0.006-0.10	0.006-0.10	0.006-0.10
Max. Extrusion(kg/h)	60kg/h	70kg/h	80kg/h	90kg/h
L/D	30:1	30:1	30:1	30:1
Total Power (kw)	28	36	40	50
Driving Power(kw)	15	18.5	22	30
Cylinder cooling Power(kw)	0.13*2	0.13*2	0.13*3	0.13*3
Overall Dimensions(m)	5.0×2.1×4.0	5.0×2.3×4.2	5.0×2.3×4.5	5.0*2.3*5
Weight(kg)	2500	2800	3000	3200

Machine Details
Name: Gearbox
1.Function:reduce the speed of transferring
2.Speed Rate:10:1
3.Gear:Hard surface
4.Gear:Hard surface type,high quality
5.Lubrication oil for transfering
6.Low noise and longer life
Main Motro:Siemens Brand
1.Running Speed:1400rpm
2.Motor Power:380V,3phase,Power can be changed
3.Motor Life:more 10years
Heater:Ceramic heater function
1.heating faster than stainless heater
2.life is longer to 5 years
3.keeping hot inside is longer than stainless save power
4.High quality ceramic and heating wire Inside.

Cover Stainless cover
1.Seperate stainless cover to control heater better and save the power consuption
2.Separate blower on stainless cover
3.Nice outlook for stainless cover
4.High speed blower to cool barrel

Fast screen changer:
1.Save worker working time
2.Never leakage for material
3.Easily to change the fiter

Die head:Taiwan design high speed
1.#45 steel stronger
2.Surface treatment,which make film more transparent
3.Bigger size than normal,which improve the output of machines
Gusset copied from Taiwan
1.Gusset part is copy from Taiwan,easy to adjust
2.Wooden gusset part is make
Double vent air ring:
1.Two lip to cool the film,it is faster than one lip.So it can improve the output of machine
2.It can do HDPE and LDPE film
We also have other products, if you interest, Please click
FILM BLOWING MACHINE
PLASTIC BAG MACHINE
RECYCLING MACHINE
PRINTING MACHINE
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the
2 installment engineer and 1 electric engineer. We are Factory, so we have cost advantage than others

2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.

3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.

4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
You are welcome to contact with us, we will provide excellent quotation and high quality machine

---
