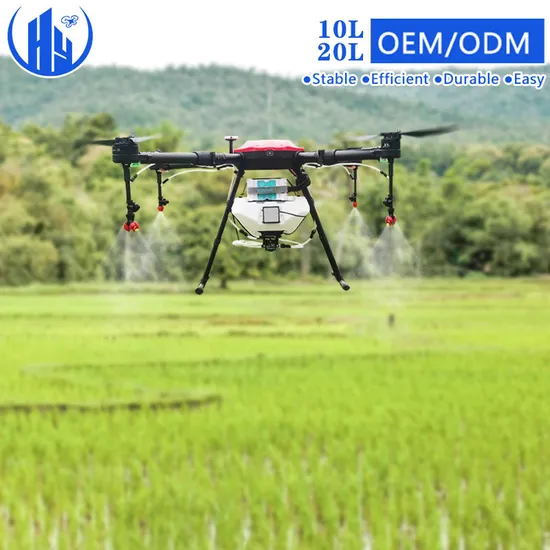

10L 20L Fertilizer Agricultural Spraying Pesticide Pulverizador Agriculture Sprayer Drone for Farming

US$3,105.00-4,188.00 1 Piece (MOQ)

Basic Info.

Model NO.
HF T10 T20
Warranty
1 Year.Core Components: 3 Months
Liquid Contained
Medicine, Disinfector
Spraying Shape
Sector
Volume
10L 20L
Power Supply
Electric
Material
Frame: Aviation Aluminum
Style
New
Spraying System
High Pressure Nozzles
Flight Control Systems
Microgram V7-AG
Dynamic System
Hobbywing X8
Keyword
Pulverizador Agriculture Sprayer Drone for Farming

Packaging & Delivery

Package Size
103.00cm * 98.00cm * 91.00cm
Package Gross Weight
69.000kg

Product Description

Product Parameters
https://nanjinghaojing.en.made-in-china.com/contact-info.html
10L 20L Fertilizer Agricultural Spraying Pesticide Pulverizador Agriculture Sprayer Drone for Farming
Model HF T10 HF T20
Diagonal Wheelbase 1500mm 1700mm
Size (Folded) 750*750*570mm 870*870*750mm
Size (Spreaded) 1500*1500*570mm 2350*2350*750mm
Weight 10kg 20kg
Loading 10kg 20kg
Spray Width 3-5m 3-6m
Flight Control Systems Microgram V7-AG (miIitary brand)
Dynamic System Hobbywing X8
Spraying System Pressure Spray
Spraying Flow 1.5-4L/min 1.5-3L/min
Operational 6-12hectares/hour 8-12hectares/hour
Daily efficiency (6hours) 20-40hectares 20-60hectares
Power Battery 12S 16000mAh 14S 20000mAh

Main Application Scenarios
Why Agricultural UAV Spraying Causes Less Pollution Than Manual Spraying
A Cleaner Choice for Pesticide Application
In modern agriculture, the method of applying pesticides has a significant impact on environmental pollution. Agricultural UAV spraying has emerged as a far cleaner option compared to traditional manual spraying, with several key factors contributing to its lower pollution levels.
Reduced Pesticide Drift
Manual spraying often leads to significant pesticide drift. When farmers spray pesticides by hand, the wind can easily carry the pesticide droplets away from the target crops, contaminating nearby water sources, non - target plants, and even the air. In contrast, agricultural UAVs can fly at a more stable height and speed, precisely controlling the spraying direction and range. This minimizes the risk of pesticide drift, ensuring that the pesticides mainly reach the intended crops and reducing the pollution of the surrounding environment.
Precise Pesticide Application
UAVs are equipped with advanced technology that enables precise control of the amount of pesticides sprayed. They can accurately calculate the area to be sprayed and adjust the spraying volume accordingly. This means that just the right amount of pesticides is used, reducing the over - application that often occurs in manual spraying. With less excess pesticide in the environment, the potential for soil and water pollution is greatly decreased. For example, in a large - scale farm, an agricultural UAV can ensure that each square meter of the field receives the exact amount of pesticide needed, while manual spraying may result in uneven distribution and over - use in some areas.
Minimized Human - Induced Pollution
During manual spraying, farmers may accidentally spill pesticides on the ground or in water bodies due to human error. Additionally, the containers and equipment used in manual spraying may not be properly cleaned, leading to residual pesticide pollution. Agricultural UAVs eliminate these human - induced pollution sources. They are remotely operated, reducing the risk of direct human contact with pesticides and the potential for accidental spills. Moreover, the maintenance and cleaning of UAVs are more standardized, further minimizing the chances of pollution caused by improper handling.
In conclusion, agricultural UAV spraying, with its reduced pesticide drift, precise application, and minimized human - induced pollution, is a more environmentally friendly option for pesticide application in modern agriculture.
Product Description
Model HF T10 HF T20
Spray Width 3-5m 3-6m
Spraying FlowModel 1.5-4L/min 1.5-3L/min

The HF T10 agricultural drone offers a spray width ranging from 3 to 5 meters, providing efficient coverage for smaller to medium-sized fields. The HF T20, on the other hand, boasts an enhanced spray width of 3 to 6 meters, enabling it to handle larger areas with greater ease and efficiency.
Model HF T10 HF T20
Loading 10kg 20kg
Daily efficiency (6hours) 20-40hectares 20-60hectares

The HF T10 and HF T20 agricultural drones, with loading capacities of 10kg and 20kg respectively and daily efficiencies of 20-40 hectares and 20-60 hectares within 6 hours, offer efficient solutions for different scale farming operations, saving time and labor while enhancing productivity. Precise Spraying: With high-definition imaging, drones can accurately identify areas that need spraying, reducing waste and optimizing resource usage.
Our drone is equipped with a highly advanced obstacle avoidance system, setting it apart from competitors. It features exceptional sensitivity and accuracy in detecting obstacles, ensuring maximum flight safety even in the most complex environments. The response mechanism is optimized for lightning-fast reaction times, enabling swift and effective avoidance maneuvers.
The 5.5-inch high-brightness remote control display is of exceptional quality and ensures crystal-clear outdoor images, remaining highly visible even in adverse outdoor conditions. The battery, noted for its remarkable endurance, can sustain operation for 6 to 8 hours, providing reliable and long-lasting power.

Centrifugal nozzles on drones are suitable for leafy vegetables, fruit trees, and flowers. They offer advantages such as uniform spray distribution, adjustable droplet size, reduced drift, less wear and tear, and compatibility with different liquids compared to high-pressure nozzles. Standard Configuration

Standard Configuration
Android ground station, easy to use / PC ground station, full voice broadcast
Router Setting support, Fully Auto Flight operation with A,B Point operation
One Button take-off and landing, More safety and time saving
Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery
Liquid Detection, Break Point record setting
Battery Detection, Low Battery return and Record point setting available
Heigh Control Radar, Stable Altitude setting, Suppoting Imitative Earth function
Flying Layout setting available
Vibration Protection, Lost Contect protective, Drug Cut protection
Motor Sequance Detection and Direction detection Function
Dual Pump Mode
Cam Recorder, Real-time transmission available
Enhance Configuration
(Pls PM for more info)
Ascent or Descent according to Terrain Imitative Earth
Obstacle avoidance Function, Surrounding Obstacles detection
Seed Sowing function, Additional seed Spreader, or ETC
RTK Precise Positioning



Company Profile
Why Choose Us
1> We have a wide range of drone products that can meet different requires.
2> We have a long history of drone manufacturing and a strong R&D team. We are constantly improving our products and services to meet the changing needs of our customers.
3> We have a global sales network. We can deliver our products to you quickly and conveniently.
4> We have a competitive price advantage that can help you save costs and increase profits. Our products are affordable and durable, and we also offer discounts and coupons for bulk orders.
6> We have a loyal and satisfied customer base that has given us positive feedback and testimonials.
7> We have a social responsibility and environmental awareness that guide our business philosophy. We aim to help our customers achieve sustainable agriculture and natural resource management with our drones.
8> We have a vision and mission to become the leading drone manufacturer in the world. We are committed to providing our customers with high-quality products and complete solutions that can solve their pain points and create value for them
If you are interested in our products or services, please feel free to contact us anytime. We look forward to hearing from you soon. Thank you for your attention.
