Basic Info.
Drive Type
Hydrostatic Drive
Portable Harvester Type
Cutting
Certification
ISO9001:2008
Application Field
Agriculture
Product Description

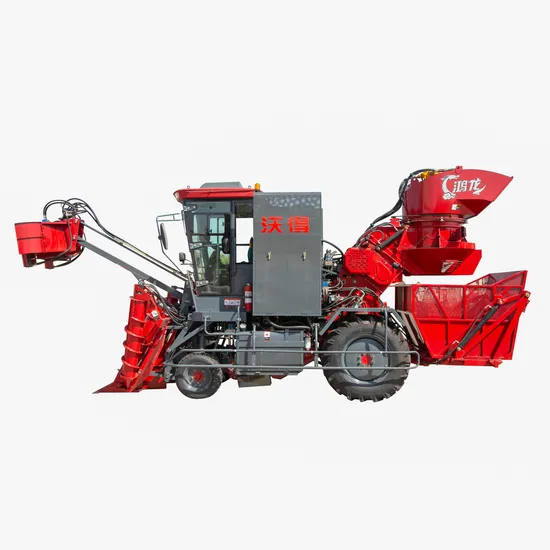

Sugarcane Sugar Cane Harvest Cutting Machine Harvester Made in China
Feature:
1. Equipped with Yuchai frequency conversion engine model YCA05190-T300,the power is up to 190HP.
2. Deluxe A/C cabin greatly increases comfort.
3. Configured with 8 inch LCD display with integration of Beidou/GPS positioning and 4G communication.
4. The combination of hydraulic and electronic control keys and the constant speed cruise can alleviate fatigue driving, also improving comfort.
5. The cut-off sugarcane harvester can simultaneously complete the sugarcane lifting up, dividing, top and root cutting, feeding, conveying, cutting, separating, fruit unloading and so on, which has advantages of less auxiliary work and high work efficiency.
| Item | Unit | Specifications |
| Model | / | 4GQ-1 |
| Structure | / | Self-proprlled |
| Harvestinf type | / | Cutting |
| Number of Harvesting Rows | row | 1 |
| Rows Spacing | m | ≥1.2m |
| Engine | Manufacturer | / | Corn |
| Model No | / | YCA05190-T300 |
| Rated Power | HP | 190 |
| Rotating Speed | r/min | 2200 |
| | Working | mm | 8600*2120*4000 |
| Transportation | mm | 7100*2560*3660 |
| Tyre | Front | Tyre Model | / | 10.5/65-16 |
| Gayge | m | 1510 |
| Number | pc | 2 |
| Rear | Tyre Model | / | 14.9-28 |
| Gauge | m | 1560 |
| Number | pc | 2 |
| Wheelbase | mm | 2528 |
| Walk Drive Type | / | Hydrostatic Drive |
| Threoretical Walk Speed | km/h | 0~25 |
| wWeight | kg | 8260 |
| Minimun Ground Clearance | mm | 260 |
| Feeding Capacity | kg/s | ≥4.5 |
| Work Efficiency | hm²/h | ≥0.24 |
>>
