Outdoor Figure 8 Self-Support Aerial Gyftc8s Gyxtc8y Optical Fiber Optic Cable

Product Description

Outdoor Aerial Figure 8 Fiber Optic Cable
The fibers are positioned in loose tubes that are made of high-modulus plastic and filled with tube gel. The tubes (and fillers) are stranded around a metallic central strength member to form a cable core.The core is filled with water-blocking compound and armored with corrugated steel tape(CST). Stranded steel wires are applied as the messenger. Finally, a figure-8 PE outer jacket is extruded.
Features:
• Figure-8 design, easy for self-supporting aerial installation, reducing installation costs
• Small size, light weight and soft, easy for installation
• Hydrolysis resistant loose tube
• Tube gel ensures critical protection of fiber
• Corrugated steel tape(CST) enhancing moisture-proof
Application: Self-supporting Aerial Installation

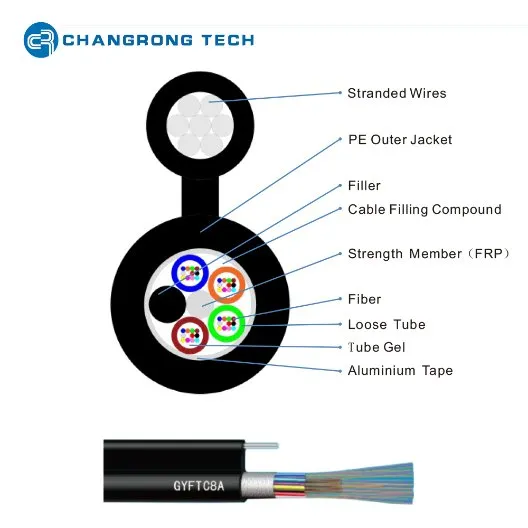

Cross Section Product Parameters

Fiber Counts	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units(Tubes or Fillers)	5	6	5	6	8	10	12	18	24
Cable Diameter(mm)	9.2*16.2	9.6*16.6	9.7*16.7	10.2*17.2	11.5*18.5	12.8*19.8	14.0*21.0	14.3*21.3	16.2*23.2
Weight(Kg/km)	145	160	160	177	203	230	260	263	312
Fiber Type	G652D G655 G657 50/125 62.5/125
Steel wire(mm)	1.0*7
Tensile Strength(N)	Long/Short Term:1000/3500
Crush Resistance(N/100mm)	Long/Short Term:1000/2200
Bending Radius(mm)	Static/Dynamic:10D/20D
Temperature(ºC)	Storage /Operation:-40ºC~70ºC

Detailed Photos Certifications ISO9001, ISO14001, ISO45001 Certified Factory.
Own Lab certified by CNAS.
Products certified by TLC.
Our Advantages 1. Totally 18 Optical Cable Production Lines, able to manufacture bulk orders with prompt delivery.2. Reliable Technical Support, meet the needs of different structure design and technical requirements.3. Totally 18 Optical Fiber Production Lines, with annual output 15 millions core kilometers, able to manufacture A-grade Single Mode Fibers with high speed.4. Own laboratory with advanced testing equipment introduced from France, Japan and USA, strictly controls products' quality under ISO9001 management system, industrial and international standards IEC60794-1.5. Supply OEM/ ODM service.
50 Sets of Optical Cable Testing Equipment:

Packaging & Shipping
Company Profile
Anhui Changrong Optical Fiber & Cable Technology Co., Ltd, located in Tianchang City, Anhui Province, very near to Nanjing and Yangzhou cities; with total area 230,000 Sqm, is one of the high-tech enterprises specialized in R&D, production and sales of optical fibers and cables. ISO9001, ISO14001, ISO45001 certified.
Equipped with 9 cutting-edge fiber drawing towers and 18 production lines for both fibers and cables, an annual production capacity of 15 million core Kilometers, own lab certified by CNAS with advanced equipment introduced from France, Japan and United States, CROFC is devoted to achieving the best solutions for customers. Catalogue
Optical Fiber SM: G652D, G657A1, G657A2
Air Blown Micro duct Cable: GYCFTY
All Dielectric Cable: ADSS, ASU, GYFTY
Duct Installation Cable: GYTA, GYFTA, GYTS, GYFTS
Aerial Installation Cable: GYTC8Y, GYTC8S, GYTC8A, GYFTC8Y, GYFTC8S, GYFXTC8Y
Direct Burial Installation Cable: GYTY53, GYTA53, GYFTY53, GYTS53
Central Uni-tube Cable: GYXTW, GYFXTY, GYFXTS
FTTH Drop Cable: GJXH, GJXFH, GJYXCH, GJYXFCH
Annual Output:
Optical Fiber: 15 million core km
Outdoor cable : 35000KM cable length
Drop Cable: 99600KM cable length
Welcome to contact us for quotation!

---
