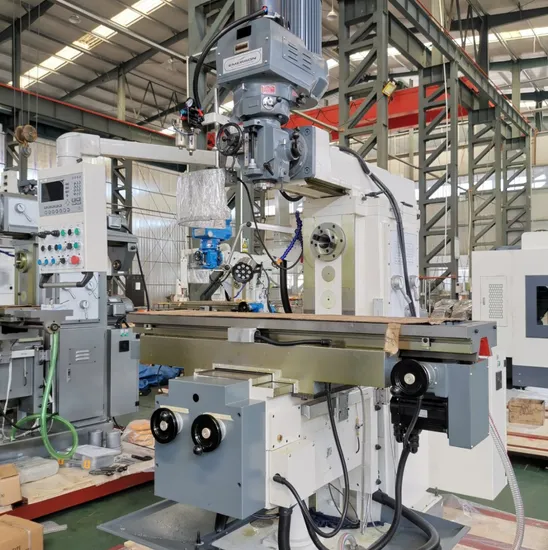

XL6336cl X6336 7.5HP 5.5HP Variable Frequency Spindle Invert Head Universal Turret Milling Machine with 3-Axis Ball Screw

Product Description

The XL6336CL with 3 axis ball screw universal milling machine milling machine is designed for processing workpieces of up to 300 kg. The solid, sturdy grey cast-iron construction and rigidity meet all the requirements for top accuracy. Features of this machine include servo drive with electronic handwheels in all axis and the stepless speed adjustment.
Product Description
XL6336CL X6336 7.5HP 5.5HP variable frequency spindle invert head
universal turret milling machine with 3-axis ball screw
Stepless feed settings and rapid feed in all axis, driven by servo motors Ball screws in all three axis minimize play Variable speed adjustment of horizontal and vertical spindle with optimal torque Hardened and polished guideways guarantees top accuracy 3 electronic handwheels for manual travel in all axis come standard Large cross table with T-slots, treated surface Central lubrication for the guideways comes standard Setting of the required feed speed by potentiometer on the contro panel Complete with rapid feed in x-, y- and z-axis to reduce downtime Large rectangular guiding in y-axis, dovetail guiding in x- and z-axis guarantees stability
Fast delivery , welcome your inquiry!!!
Detailed Photos

7.5HP / 5.5HP Variable speed adjustment spindle with optimal torque
Stepless feed settings and rapid feed in all axis, driven by servo motors Ball screws in all three axis minimize play 3 electronic handwheels for manual travel in all axis come standard All the oil window made by copper
Collect the external electric control cabinet.
The electric components well distributed, and more reliable
Central lubrication for the guideways comes standard.
All the oil plugs are made by stainless

All the oil window made by copper

Product Parameters
Technical specifications

Specifications	Unit	XL6336CL
Table size	mm	1600×360
Table travel (X/Y/Z)	mm	1300/320/450
Table feed. (X/Y/Z)	mm/min	30-750/20-500/15-375
Table rapid speed (X/Y/Z)	mm/min	1200/800/600
Spindle taper		7:24 IS050 (H) 7:24 IS040 (V)
Stroke of spindle quill	mm	127 (V)
Distance between spindle nose and table surface	mm	200-650
Distance between horizontal spindle center line and table surface	mm	20-470
Distance between horizontal spindle center line and arm surface	mm	245
Spindle speed range	r.p.m	12steps 60-1800 (H) Variable 80-650 650-5000 (V)
T-slots(NO./width/pitch)	mm	3/18/80
Arm travel	mm	550
Main motor power	Kw	5.5KW (H) 7.5HP (V)
Torque of X/Y/Z axis AC servo motor	N.m	10/10/10
Overall size	mm	2520×2100×2500
Net weight	kg	2850

Certifications
In 2002, we passed the ISO9001 Quality guarantee system certification, and got the Certificate of CE in 2007.
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Machine packed with plywood case and steel pallet.


Company Profile
Shandong XILI Machine Tool Co.,Ltd.(and Tengzhou XILI Machine Tool Co.,ltd.) is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.Hope we can built long-term business relationship with you.
FAQ
1. What is the MOQ ?
Our minimum order quantity is 1 set.
2. What is the payment term ?
T/T, 30% advance payment before machine production, 70% balance payment before machine delivery.
30% T/T advance payment, and 70% balance payment by Irrevocable LC at sight.
3. What is your trade terms ?
FOB, CIF, CFR,EX Work.....all are acceptable.
4. How long is the guarantee ?
12 month after machine delivery from factory.
5. How can i start the order ?
You could contact here in made in China, or contact by
If you need any further information, feel free to contact us.

---
