ASTM D5882 Pile Integrity Tester (Low Strain Dynamic Pile Tester)

Product Description

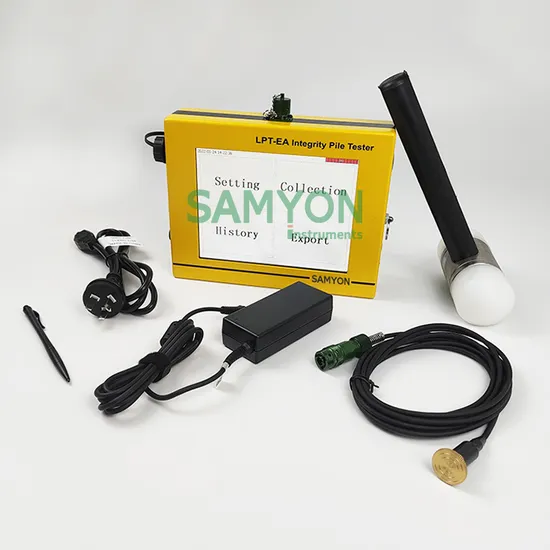

Product Description LPT Low Strain Dynamic Pile Tester
Application
Used for testing the pile integrity and detecting the defect position by dynamic method
Standard
ASTM D5882 Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations

Main controller size	225*172*62mm
Main controller weight	2.0kg
Accelerometer	Sensitivity:100mV/g
Frequency	0.5-10000Hz
Waterproof	IP68
Working temperature	-54ºC~+121ºC

Other Product HPT High Strain Dynamic Pile Tester
Application
Used for testing the pile loading capacity by dynamic method
Standard
ASTM D4945-00 Standard Test Method for High Strain Dynamic Testing of Piles
Feature
Sampling frequency is Optional of 10 kHz, 20 kHz, 30 kHz and 40 kHz.
Sampling points are optional of 1024, 2048 and 4096. Maximum sampling time is up to 400 ms
Before test the two accelerometers and two strain transducers are self-checked automatically, determine whether the system is in normal state.
Automatically check the static strain deviation of the strain transducer during installation and adjusted to zero before blow.
During test every blow can be saved automatically
Built-in lithium battery can be used more than 5 hours continuously.
RCAPWAP program carry on match analysis automatically or manually.
Specification

Name	QTY
Main Controller	1
PE Accelerometer (lmport from America)	2
Strain gauge(Range 2000)	2
One-to-four cable	1
Main Cable(30m)	1
U disk(PDAR software,RCAPWAP software and Users Manuals)	1

LPT-EV WIFI Low Strain Dynamic Pile Tester Application
Used for testing the pile integrity and detecting the defect position by dynamic method
Standard
ASTM D5882 Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations
Feature
Screen:8''LCD touchscreen
Accelerometer:0.5~10000Hz accelerometer
Software:LPTR,without key
Specification

Screen	8''LCD touchscreen
Accelerometer	0.5~10000Hz accelerometer
Software	LPTR,without key

L-HPT High/Low Integrated Dynamic Pile Tester
Application
Used for testing the pile loading capacity and the pile integrity and detecting the defect position by dynamic method
Standard
ASTM D4945-00ASTM D5882
Specification

Size	225* 172* 62mm
Weight	2.0kg
Display	With 24bit high precision 8" touchscreen and high brightness colorful LCD.
HPT Accelerometer	PE Accelerometer, imported from America
LPT Accelerometer	Imported from America
Sensitivity	100mV/g
Frequency	0.5~10000Hz
Strain gauge	Range 2000
Data	Can save up to 10k measured curve, export through USB
Power	Li battery, can work more than 6hours continuously

SLPT Automatic Static Load Pile Tester
Application
Used for testing the pile loading capacity by static method
Standard
ASTM D1143ASTM D3689

Main Controller	Wired,Wireless
Control Box	6channels/12channels
Displacement Sensor	Range 50mm,0.01mm,waterproof
Oil Pressure Sensor	80MPa,0.25%FS
Wireless Antenna	3m cable,2pcs,signal up to 1000m
Wired Communication Cable	30m
JZA-R Analysis Software	single-cycle or multi-cycle
