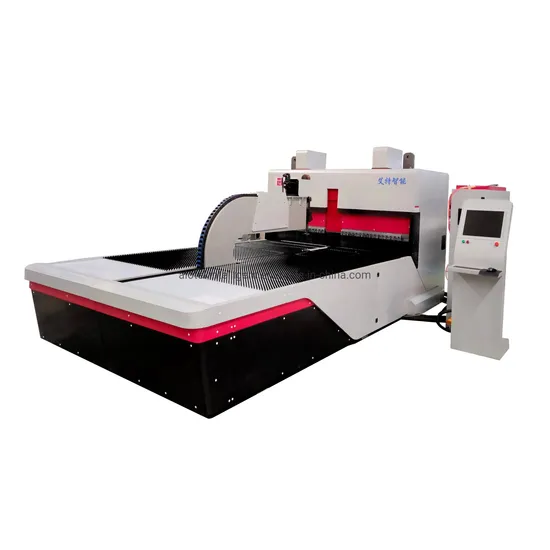

Aiotek HS2500 Press Brake Machine Automatic Bending Center CNC Sheet Metal Panel Bender for Anti-Thief Door

Product Description

Product Description AT-HS2500 Pressure arm type flexible bending center for thick sheet metal
Product Parameters

NO	Name	Parameter
1	Feeding structure	C- type
2	Max. bending length	2500mm
3	max. bending height	170mm
4	Min. bending height	4mm
5	Min. forming size of four side	110*140mm (customizable)
6	Min. forming size of single side	110mm
7	Min..arc radius	1.2mm
8	Min.continuous bending speed	0.2s
9	Bending angle	0-180 degree
10	Max. feeding speed	120m/min
11	Equipment size	5800*3100*2350mm
12	Total power	56KW
13	Average power	4.5KW
14	Weight	20000KGS

Main Functions
1.four-side bending;
2.one-side bending;
3.continuously bending up and bending down without replacing bending blades .
4.Flexiblely bending arc-side curbs from 0-90 degree;
5.Automatically forming the squared rectangle side curbs .
6.Automatically tightly folding edges of panel;
7.Automatically forming rectangle boxes with max.100mm height of side edges.
8.Automatically bending the various complicated combinations of various angles of edges for panel.
Our Advantages 1.Patent design of flexible pressure armThe first flexible arm bending center manufacturer in China,We have obtained more than 20 patent certificates
2.Jointly established a research base with many domestic universities3. CE Certificate and ISO9001Exhibition
Packaging & Shipping
Qingdao Aiotek Intelligent Equipment Co., Ltd. is one well-known manufacturer which are specialized in CNC punching machine in North China from 2006. We are one-stop supplier for sheet metal machines.
In March 2017, our company moved into a high-level industrial park. The new plant is focusing on the R&D and manufacturing of high-end CNC machines for sheet metal industry, including CNC turret punching machine, all-electric servo turret punching machine, press brake, CNC all-electric servo flexible bending center.
Powerful R&D center ensures that our machines are equipped with the most cutting-edge technologies. With a professional team and rich experience, we have over 900 factories all around China as our partners for a long-term cooperation, and over 2000 sets of machines have been installed and come into use with stability. We also have timely after-sales service without time difference to ensure the stability of enterprise production without unnecessary costly downtime.
Our machines are widely used in electric cabinets, air conditioning, elevators, kitchenware, aluminum veneer, solar water heaters, auto and bicycle accessories, audio equipment, household appliances and other sheet metal industries. They have been exported to Southeast Asia, South Asia, Central Asia, Africa, Middle East, Russia, and other countries and regions.
With us, you'll make your solution more productive! we care what you care!

---
