ASTM A333 Gr6/En10216-2 13crmo4-5 Seamless Pipes

Product Description

1.Carbon Steel Seamless Pipe Description

Product Name	Seamless Carbon steel pipe
Size	OD	12.7mm-710mm
	Thickness	3mm-45mm
	Length	SRL,DRL,5.8M,11.8M
Steel Material	ASTM A53/A106,API 5L,EN10216,DN162ASTM A179 A192 A210
Steel Grade	Grade A,Grade B,Grade C,X42,X52.S235JRH,S355,P265 ect.
Process	Hot rolled/hot expansion/cold drawn/cold rolled
Usage	High temperature service
Surface	Bared Black Painting, Galvanized,Coating
Proctor	Plastic cap
Package	Bundles, Bulk
Inspection	With Hydraulic Testing, Ultrasonic testing or X-ray Test
Certificate	ISO9001;2000
Date of Delivery	Less Than 15/20/25/30/40/50/60 Days According To The Quantity
Payment:	L/C or T/T
Port of Shipment	Xingang,China

A.Chemical composition in % For API 5L PSL1

TYPE	Steel grade	C .	Si	Mn .	P	S
API 5L PSL1	B	≤0.28	-	≤1.20	≤0.03	≤0.03
API 5L PSL1	X42	≤0.28	-	≤1.3	≤0.03	≤0.03
API 5L PSL1	X52	≤0.28	-	≤1.4	≤0.03	≤0.03
API 5L PSL1	X56	≤0.28	-	≤1.4	≤0.03	≤0.03
API 5L PSL1	X60	≤0.28	-	≤1.4	≤0.03	≤0.03
API 5L PSL1	X65	≤0.28	-	≤1.4	≤0.03	≤0.03
API 5L PSL1	X70	≤0.28	-	≤1.4	≤0.03	≤0.03

B.Mechanical Properties for API 5L PSL1

TYPE	grade	Tensile strength (Mpa)	Yield strength (Mpa)	Elongation
API 5L PSL1	B	≥415	≥245	As per API 5L
API 5L PSL1	X42	≥415	≥290	As per API 5L
API 5L PSL1	X52	≥460	≥360	As per API 5L
API 5L PSL1	X56	≥490	≥390	As per API 5L
API 5L PSL1	X60	≥520	≥415	As per API 5L
API 5L PSL1	X65	≥535	≥450	As per API 5L
API 5L PSL1	X70	≥565	≥483	As per API 5L

C.Chemical composition in % For API 5L PSL2

Level	Steel grade	C .	Si	Mn .	P	S
PSL2	B	≤0.24	-	≤1.20	≤0.03	≤0.03
PSL2	X42	≤0.24	-	≤1.3	≤0.03	≤0.03
PSL2	X52	≤0.24	-	≤1.4	≤0.03	≤0.03
PSL2	X56	≤0.24	-	≤1.4	≤0.03	≤0.03
PSL2	X60	≤0.24	-	≤1.4	≤0.03	≤0.03
PSL2	X65	≤0.24	-	≤1.4	≤0.03	≤0.03
PSL2	X70	≤0.24	-	≤1.4	≤0.03	≤0.03

D.Mechanical Properties For API 5L PSL2

Level	grade	Tensile strength (Mpa)	Yield strength (Mpa)	Elongation
PSL2	B	415-760	245-450	As per API 5L
PSL2	X42	415-760	290-495	As per API 5L
PSL2	X52	460-760	360-530	As per API 5L
PSL2	X56	490-760	390-545	As per API 5L
PSL2	X60	520-760	415-565	As per API 5L
PSL2	X65	535-760	450-600	As per API 5L
PSL2	X70	565-758	483-621	As per API 5L

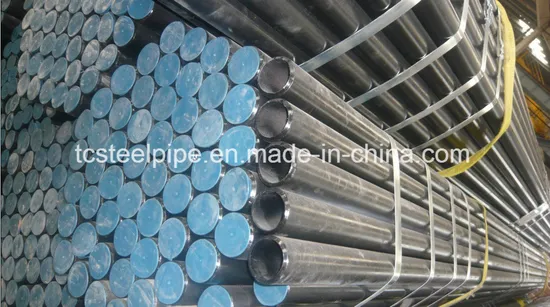

2.Carbon Steel Seamless Pipe Showcase
3. Carbon Steel Seamless Pipe Process 4.Carbon Steel Seamless Pipe Production Facility 5.Carbon Steel Seamless Pipe Inspection Equipment 6.SA179/SA192 CHEMICAL AND MECHANICAL COMPONENT:

ASTM A179/(ASME SA179)
Seamless Cold Drawn Low Carbon Steel Heat Exchanger And Conderser Tubes
Application:	For tubular heat exchangers,condensers,and similar heat transfer apparatus.
Size(mm):	O.D.:6.0~114.0 W.T.:1~15 L:max 12000

Grade and Chemical Composition (%)

Chemical Composition	C	Mn	P≤	S≤	Si≤
	0.06-0.18	0.27-0.63	0.035	0.035	0.25

Tolerance(SA-450/SA-450M):

OD In (mm)	+	-	WT In(mm)	+	-
<1(25.4)	0.10	0.10	≤1.1/2(38.1)	20%	0
1~1.1/2(25.4~38.1)	0.15	0.15	>1.1/2(38.1)	22%	0
>1.1/2~<2(38.1~50.8)	0.20	0.20
2~<2.1/2(50.8~63.5)	0.25	0.25
2.1/2~<3(63.5~76.2)	0.30	0.30
3~4(76.2~101.6)	0.38	0.38
>4~7.1/2(101.6~190.5)	0.38	0.64
>7.1/2~9(190.5~228.6)	0.38	1.14

ASTM A192/A192M-02
Seamless Carbon Steel Bolier Tubes for High-Pressure
Application:	For seamless carbon steel bolier and superheater tubes for high-pressure service
Size(mm):	O.D.:6.0~114.0 W.T.:1~15 L:max 12000

Grade and Chemical Composition (%)

Chemical Composition	C	Mn	P≤	S≤	Si≤
	0.06-0.18	0.27-0.63	0.035	0.035	0.25

Tolerance(SA-450/SA-450M):

OD In (mm)	+	-	WT In(mm)	+	-
<1(25.4)	0.10	0.10	≤1.1/2(38.1)	20%	0
1~1.1/2(25.4~38.1)	0.15	0.15	>1.1/2(38.1)	22%	0
>1.1/2~<2(38.1~50.8)	0.20	0.20
2~<2.1/2(50.8~63.5)	0.25	0.25
2.1/2~<3(63.5~76.2)	0.30	0.30
3~4(76.2~101.6)	0.38	0.38
>4~7.1/2(101.6~190.5)	0.38	0.64
>7.1/2~9(190.5~228.6)	0.38	1.14

---
