IACS Approved 700m3/h UV Ship Ballast Water Treatment System BWS

Product Details

Product Details

Product Description

Product Description
Product Introduction
700m3/h UV Ship Ballast Water Treatment System BWS uses advanced full-automatically backwash filter, with high-efficient medium-pressure UV radiation technology to accomplish the online treatment of ship ballast water. LS BWMS has been type approved in accordance with MEPC.300(72) aka new G8 and BWMS Code by China Classification Society (CCS) and fully meet “D-2” discharge standard.
700m3/h UV Ship Ballast Water Treatment System BWS offers simple operation and simple maintenance, dual-directional (local and remote) automatic control, friendly interface, and easy manipulation. The system is in unit-modular design with a capacity range from 150～3000m³/h, thus providing flexible and simple installation on small tonnage vessels while multiple units assembled installation on large-tonnage vessels. Therefore, it takes no large space. Meanwhile, the system is also suitable for old ships with narrow space.
The filtration plus UV radiation method takes no additional contamination with no adding or reserving chemicals. The entire system is completely closed in operation thus causing no hazards of radiation or noise to the crew.
System control can be realized through the optional remote control box for local and remote two-way control. Meet on-site and remote operation. The whole process is convenient, intuitive and reliable. The system working data can be stored and recorded to reflect the operation of the equipment during the ship's voyage, and can provide working operation records according to the requirements of the inspection department, with long-term traceability.
Working Principle

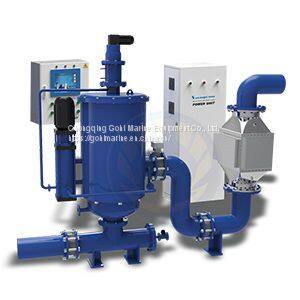

The System includes Filter, UV Reactor, Control Unit, Power Cabinet, and Electric Valves, monitoring equipment, sampling device and pipeline. General working modes include ballasting and de-ballasting processes, as well as ballast stripping and emergency bypass.
Technical Specification
ModelLS-700
Capacity ( m3/h):5000
Filter × Qty:LSF-700 ×1
UV Reactor × Qty:LSV-700 × 1
Control Unit × Qty:LSC-1L × 1
Power Cabinet × Qty:LSP-1 × 1
Rated Power (kW)*:~18
Power Consumption

Component
Power Consumption (kW)
Continuous loads
Intermittent loads
Power cabinet130.5
Control Unit1.00.5
Backflush pump/3
sub-total144
Total18

Working Conditions
Working Conditions
Humidity
0～95％
(Equipment in Engine Room)
Ambient temperature
0～55 ℃
Seawater temperature
0～35 ℃
Slope & Swing
Static
 All directions ≤22.5°
Dynamic
 All directions ≤22.5°
Electromagnetic
Compatibility
Voltage floating
±10%
Instantaneous voltage floating
±20%
Frequency floating
±5%
Instantaneous frequency floating
±10%
(Recover in 3 seconds)
Power Supply
380(440)V, 50(60)Hz, 3Φ
Fresh Water
About 2.0 m3 / time
For replacing seawater in BWMS when storage
General Requirement of Relevant Piping
Shipbuilding standard are mandatory regarding relevant piping, sampling facilities and pipes used along for firefighting, and shall be easy to clean, inspect, service and operate. The freshwater piping shall not be mixed up with seawater and piping design pressure shall not exceed 1.0MPa.
Electrical
Requirements
The cable connected to the system shall be approved marine cable.

Main Model List
ModelRated Capacity (m3/h)Capacity Range (m3/h)Power (KW)Weight (Ton)Length (mm)Width (mm)Height (mm)
BWS-15015050-150221.5260010001700
BWS-250250150-250262.2240021001800
BWS-350350250-350352.3240021001900
BWS-500500350-500502.4240021002000
BWS-850850500-850743.0310024002300
BWS-11501150850-1150983.3350025002300
BWS-150015001150-15001234.1450030002400
BWS-170017001500-17001465.9500031002300
BWS-230023001700-23001946.5550038002300
BWS-300030002300-30002438.2650045002400

Automatic Backflush Filter as the first step of the system is specifically designed for ballast water screening, which has fine mesh elements aiming to remove the microbe and sediments with size larger than 50μm.
Filter adopts the up-to-date concept of auto backflush to efficiently fulfill filtering and screen-cleaning at the same time, backflush automatically starts based on differential pressure while filtration continues, with no other manual on-site operations needed.
Filter functions only in Ballasting process while it is bypassed in De-ballasting process and By-pass process.
