Ultra Fast Small Tube Fiber Laser Cutting Machine for Carbon Steel Tube Pipe Cutting

Product Description

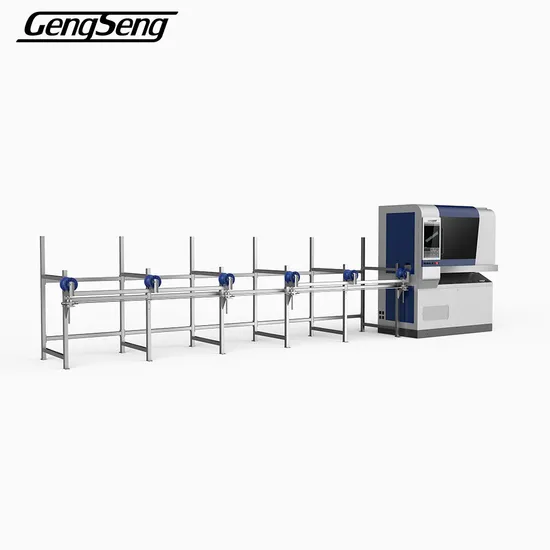

Laser Cutting Tube Machine
Characteristic
•Wide Cutting Applications
Applied in carbon steel, stainless steel, alloy steel and other metal types cutting.
•Special Profiles of Tubes
Applied in U-shaped, L-shaped, I-beam, rectangular, oval and other irregular profile and tube types cutting.
•Professional and efficient system by ourselves
The host computer of EtherCat is based on the Windows system, which makes a rapid speed of response (control and communicate in microseconds) and strong anti-interference ability.
•Auto Pneumatic Chucks
The tube cutting machine is highlighted with excellent tightness and motional characteristics, the chucks can stably clamp a variety of tube materials as square, round, oval, flat, triangular, L-shaped, I-beam
•Powerful and User-friendly Nesting software
Professional tube cutting software and matching nesting software are implemented to draw graphics or text at random or instant processing, giving handy processing, simple and easy using experience.
•stable and fast Tube welded bed
Which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the frame. High strength, stability, tensile strength, ensuring years of use without distortion;

Main Features
1. Take smaller working area for the machine, convenient for a person to finish loading and unloading
2. Energy efficient: Lowest running cost for cutting metal
3. Capacitive Auto-height adjusting/ manual cutting head
4. Different power draw (1000w 1500w 2000W 3000w 6000w)
5. Computer design suit for repeat cutting
6. Programmable cutting assist gas solenoid
7. The cutting diameter of round tube is 13~520mm, square tube is 10*10~370*370mm.
8. Only takes 2 seconds to feed automatically, the maximum of feeding weight at 1 time is 2T.
9. Use the high-rigidity integrated rotary pneumatic chuck with high-precision clamping concentricity, which makes the machining easier and avoid the damage to the surface of pipes.

Application
Cutting a wide variety of metal tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet and other materials cutting. You can use it in the following industry: Home Appliance, Environmental, Equipment, Petroleum Machinery, Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry and etc.


Specification

Model	LPC80-A4
Laser Power	1000-3000w
Maximum Acceleration	1.5G
Cutting Precision	0.1mm
Way of loading and unloading	Automatically
Working area	2350*1300*2300 mm
Length of automatic loading	4000-6500 mm
Cooling	Water cooling
Height	900kg

After Sales Service

Standard export packaging, or customized packaging according to your requirement.
All products must be 100% tested to ensure their function, reliability, durability and safety.
We also have a perfect after-sales service system. The warranty of our machine is 2 years and we can provide 24-hours on Line/video technical support when you meet any problems of your machine.

About our company
Guangdong Gengseng Intelligent Equipment Co., Ltd is specialized in CNC Cutting &Welding automation solutions. With professional engineer team from HYD. CNC. We have started to supply CNC control system for plasma & oxyful cutting since 2004. Gradually we expanded our business to Turn-key system integration and complete cutting machine design and assembly. We got into Laser cutting field in 2008 when YAG laser cutting machine was very hot on market. Almost all YAG laser cutting machine manufacturers like DNE laser, HSG laser...Used our CHC-300 cap sensors for laser cutting height control. Just because of that, Our cap height sensor CHC-1000 series for fiber laser cutting got delayed. When our CHC-1000 came to market in 2015, Cypcut system has taken all fiber laser cutting market in China. Simultaneous YAG laser cutting was being replaced by fiber laser cutting fastly. We had to work with PA8000, Beckhoff such foreign controllers for pipe cutting, laser welding and Robotic cutting...etc. Meanwhile, we started to offer complete fiber laser cutting machine, and machine integration service like robotic laser cutting, customized laser welding...Which opened a new world for us! More and more professional engineers joined our team in recent years, which enable us to make more and more automation solutions to clients around the world. We can support you to make machine on your own, or supply complete machine according to your request. Welcome to visit our factory in Foshan.

FAQ
Q: How about the work life of the machine?
A: Our laser machine can work for more than 10w hours.
Q: Do I need to buy other spare parts after buying the machine?
A:Yes, there are 4 parts for us to deliver.
Q: How can we deal with the waste of every cutting?
A: We have waste-cleaning in pipe and we also have the dust-off module, which can make the pipe smooth and burr-free after cutting.
Q: Why should you choose us?
A: We have over 20 years automatic laser equipment experience, you will get best quality, best service, best price and best warranty.
Q: Do the machine can be customized according my requirement?
A:Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q:How about your after-sales? Can we solve the problem as soon as possible?
A: Sure, we can provide 24-hours on Line/video technical support when you meet any problems of your machine.

---
