Ck6150 Ck6140 Ck6136 Ck6130 Small Flat Bench Cutting Horizontal Metal Machine Desktop Turning Tool Vertical Professional Mini Wood Slant Bed CNC Lathe

Product Description

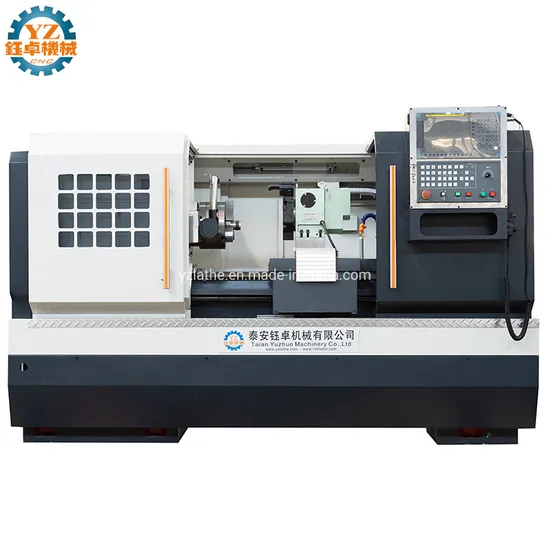

CK6150 CNC Machine Tool Metal Turning Lathe Professional CNC Lathe
CNC Lathe Machine CK6150 Specification

Max. swing dia. over bed	500mm
Max. swing dia. over cross slide	290mm
Max. processing length	750mm
Dia. of spindle	70mm
Spindle taper	A2-8
Through hole dia. of drawing pipe	68mm
Spindle speed	150-2000rpm
Tool holder	4 station
Tool bar section	20X20mm
Main motor power	7.5kw
X/Z axis travel/ stoke	300/760mm
X/Z axis fast feeding speed	6/8 M/MIN
Tailstock sleeve travel	120mm
Tailstock taper	MT5
Dimension	2300*1500*1600mm
Weight	2900kg

Standard Configuration:
1- 3-jaw chuck (200mm);
2- Four station electric tool post;
3- Manual tailstock;
4- Cooling system;
5- Lighten system;
6- Automatic lubrication system.
Optional Configuration:
1- CNC system: Siemens 808D, (warranty service) ;
2- Hydraulic chuck;
3- Pneumatic chuck;
4- Hydraulic tailstock;
5- Horizontal six-station turret.
Machine Images
Company Information
Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.
Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.
Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.
CE Certifications
Foreign Customers
Contact Us
If any interest about our cnc lathe machine, cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.

---
