Heavy Duty Horizontal Metal Turning Lathe Conventional Lathe Machine Cw6180 in Manual Type

Product Description

Horizontal Heavy Duty Lathe Machine CW6180 Main Features:
This series lathes are suitable for turning internal and external cylindrical surfaces, conical surfaces,other rotating surfaces,end surfaces,and can also process a variety of commonly used threads, such as metric, inch, modulus, diameter thread, as well as drilling, reaming, tapping, Broaching wirgrooves and other work it can process materials such as steel, cast iron and non-ferrous metals. When the machine tool is finished, the roundness error is not greater than 0.01mm,the cylindricity error is not greater than 0.04mm in the measurement length of 300mm; the surface roughness (Ra) is not greater than 25um.Main structural features:
1.The overall high-torsion horizontal bed is made of high-quality cast iron. The guide rail surface is processed by induction hardening precision, and the guide rail surface width is 600mm;
2.The guide rail pair composed of PTFE guide rail soft belt is wear-resistant, vibration-absorbing, and has good accuracy retention;
3.The main shaft adopts a three-support structure, which has high rigidity and high precision, and can be strongly cut. The main shaft through hole is a large through hole of 100mm:
4.The 18-levelwide speed range can choose a more reasonable speed;
5. Can turn metric and imperial threads directly;
6.The slide box has a fast moving mechanism.

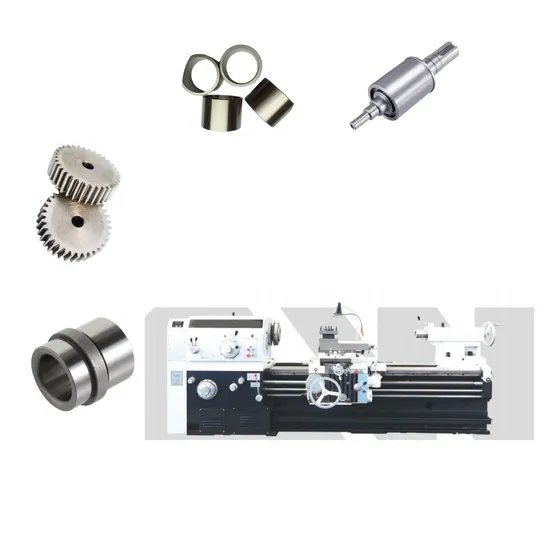

MACHINE IMAGES:
SPECIFICATIONS:

Item No.	CW6180		CW61100
Specifications
Swing over bed	800 mm		1000 mm
Swing over carriage	480 mm		680 mm
Max.length of workpiece	1500 2000 3000 4000 5000 6000 mm
Max.turning length	1350 1850 2850 3850 4850 5850 mm
Pan of guideway	600 mm		600 mm
Spindle
Spindle nose	C11		C11
Spindle bore	100 mm
Taper hole of spindle	1:20		1:20
Range of spindle speeds	Forward rotation: 6~750 r/min Reverse rotation: 10~775 r/min
No.of spindle speeds	18/6		18/6
Feed motion
Longitudinal and cross	64;0.1-24.32 r/min		64;0.1-24.32 r/min
Cross/long longitudinal feed	1/2		1/2
Screw pitch of leadscrew	12 mm		12 mm
No. and range of metric thread	50;1-240 mm		50;1-240 mm
No. and range of inch thread	26;14-1		26;14-1
No. and range of module thread	53;0.5-120 mm		53;0.5-120 mm
No. and range of dia. thread	24;28-1		24;28-1
Rapid traverse speed	4000 mm		4000 mm
Distance of spindle and tool plane	33 mm		33 mm
Tool post&Tailstock
Tool post swing range	±90°		±90°
Max. Travel of cross slide	500 mm		500 mm
Mex. Travel of top slide	200 mm		200 mm
Section of tool shank	32mm(Knife holder size202x202)
Dia./Travel of tailstock	100/250 mm		100/250 mm
Taper hole of tailstock quill	Mores 6		Mores 6
Other
Main motor power	11kw		11kw
Length	3670 3985 5165 6220 7400 8260 mm
Width/Height	1730/1450 mm		1730/1450 mm

FACTORY IMAGES:
FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
