Multi-Functional Marble Slab Surface Grinding and Processing Machine

US$9,000.00-12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
QDM-900 1200 1800
Control
CNC
Automation
Automatic
Precision
High Precision
Application
Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Marble, Coarse & Fine Grinder
Type for Grinding Machine
Disc Grinding Machine
Grinding Machine Type
Granite Polishing Machine
Grinding Method
Wet Grind
Certification
API, CCC, SONCAP, GOST, ISO, CE, Stone Machine
Condition
New
Main Motor Power
15kw
Voltage
220/380/415V
After Sales Service Provide
Engineer Available Service Machinery Overseas
Max. Processing Size
3000X1800X120mm
Max. Heads No.
1 Head
Water Consumption
4 M3/H
Approximate Weight
3 Tons
Transport Package
Seaworthy Wooden Case for Automatic Cutting Machin
Specification
6500X3100X2000mm
Trademark
Wanlong
Origin
China
HS Code
84642000
Production Capacity
5000sets Per Year

Product Description

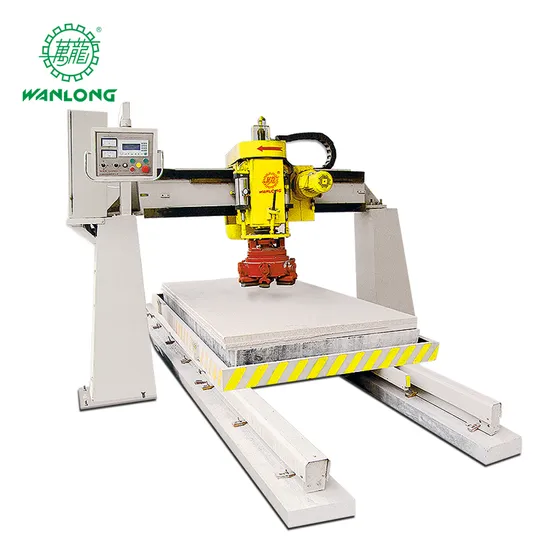

QDM900/1200/1800 Bridge Single Head Automatic Polishing Machine
Model QDM-900 QDM-1200 QDM-1800
Main motor power mm 15 15 15
R.P.M. of polishing head r/min 560 560 560
Traverse feeding speed of polishing head mm/min 0-5600 0-5600 0-5600
Lengthways feeding speed of polishing head mm/min 0-4300 0-4300 0-4300
Supplied by user Mpa 0.35-0.5 0.35-0.5 0.35-0.5
Required air source m3/min 0.15-0.30 0.15-0.30 0.15-0.30
Production capacity m2/h 2-2.5 2.5-3 3-3.5
Max. polishing size (LxWxH) mm 3000x900x120 3000x1200x120 3000X1800X120
Water consumption m3/h 4 4 4
Approximate weight kg 2000 2500 3000
Overall dimensions (LxWxH) mm 6500x2200x2000 6500x2500x2000 6500X3100X2000

Configurations:
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Strong cast iron HT200.
4. Touch sensitive Panel Easy for worker to operate.
5. 3-3.5sqm per hour for medium hard granite.
6. 12 months warranty
