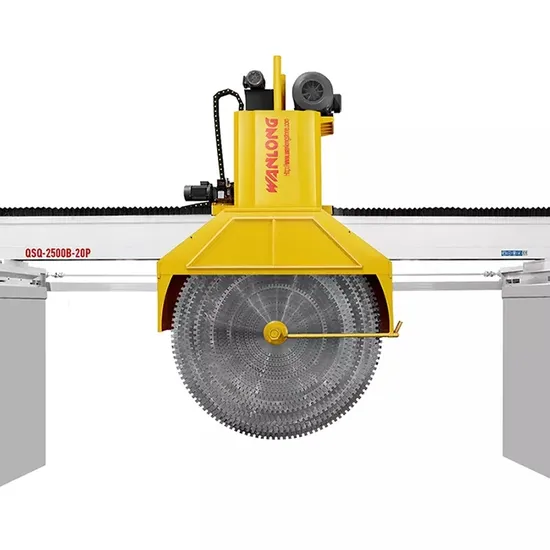

Wanlong Qsq-2200/2500/2800 High Efficiency Bridge Multi-Blade Stone Cutting Machine

Product Description

Bridge Granite Multi Cutter Machine:
QSQ2200 2500 3000 combines different diameters of blades working simultaneously as multiblade cutting. It has screw-rod lifting system and hydraulic lifting system for choice. The crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ). Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.
It is also flexible in modification for Single blade cutting.
PRODUCT FEATURES:

High efficiency for cutting block into slabs with multi-blade combination, this machine is the ideal equipment for producing large slabs.
1. SIEMENS main motor with stronger seats
2. PANASONIC PLC and inverter
3. Encoder for X, Y, Z movement
4. Strong cast iron HT200
5. Double V-shape guide rails enhance the smooth cutting and movement
6. Touch sensitive Panel Easy for worker to operate
7. Locking system on vertical beam to protect the machine collaption
8. Fast hydraulic lifting system
9. 110sqm per 10 hours for medium hard granit

QSQ-2200 QSQ-2500 QSQ-3000

Max.diameter of blade	mm	2200	2500	3000
Max.No. of blades	pc	8	5	1
Recommended Blade Combination	mm	2200 2000 1800 1600 1400 1200 1000 800	2500 2000 1600 1200 800
Recommend saw blade thickness	mm	6.5	32	8.0
Main motor power	KW	45	45	37
Max.Cutting size(L x W x H)	mm	3200*1800*950	3000*1800*1100	2500*1800*1350
Overall dimensions (L x W x H)	mm	7300*3800*5500	7300*3800*5500	7300*3800*6100
Water consumption	m3/h	6	6	6
Approximate weight	Kg	10000	11000	12000
