Vertical Turret Taiwan Milling Machine for Sale (X6323 X6325)

US$3,820.00

1-2 set

US$3,650.00

3+ set

Basic Info.

Model NO.

X6323 X6325, X6330A

Structure

Ram

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

Certification

CE, ISO 9001

Condition

New

Product Name

Turret Taiwan Milling Machine

Table Size

230X1076mm

Spindle Taper

ISO30,R8,ISO40

Table Travel

670X310X390mm

RAM Travel

315mm

Distance Spindle to Table

0-350mm

Spindle Speed

66-4540rpm/80-5440rpm

Spindle Motor

2.25kw/3HP

Spindle Feed

0.04/0.08/0.15mm/R

Transport Package

WOOD CASE

Specification

CE ISO9001

Trademark

UNITECH

Origin

CHINA

HS Code

84595900

Production Capacity

100SETS/MONTH

Product Description

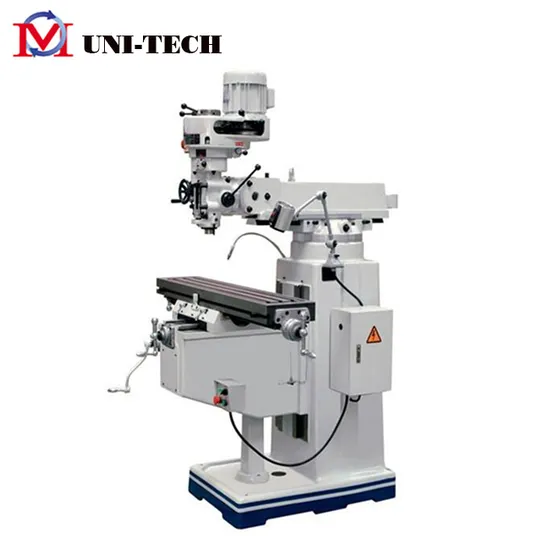

Vertical Turret Taiwan Milling Machine for sale (X6323 X6325)
Mill head from Taiwan,
Variable or step pulley mill head are available.
Mehanite cast iron.
T-cuite B cover.
CE
Milling head swivel, front and back, left--right
Leadscrew, milling head, nut from taiwan
Column and base one piece cast iron, more stable milling
X, Y, Z can be with power feed device
Spindle taper can be ISO30, R8, ISO40,
Standard accessories.
Coolant, work light, tool and tool box, chip tray, guideway with splash guard.
Optional accessories:
DRO, milling chuck, vice, dividing head, slotting head, clamping kit, 24V CE, worktable guieway protection.

Specification //Code No.

X6323A

X6323B

X6325A

X6325B

X6325

X6325C

XU6325

X6325D

X6330

X6330A

X6333

63008

63009

Table size

230*1067(9*42) 230*1246(9*49)

254*1270(10*50) 254*1370(10*54)

250*1270 (10*50)

254*127 (10*50) 254*137(10*54)

305*1370(12*54) 305*1500(12*60)

330*1370(13*54) 330*1500(13*60)

Long travel

650 840

850 950

770

850 950

870 1000

840 1000

Cross travel

305

400

420

380

368

Vertical travel

400

420

400

420

430

450

T-slot No.and size

3*16

Ram travel

312

470

500

Distance from spindle nose to table surface

0-415

0-405

0-350

0-450

Spindle hole taper

Standard:R8 optional :ISO30/ISO40

Standard :ISO40

standard:R8 optional :ISO30/ISO40

standard :ISO40

Spindle travel

127

Spindle speed

standard: shift grade 16: 50HZ65-4500,60HZ80-5440

standard: 50HZ65-4500,60HZ80-3750

standard: 50HZ65-4500,60HZ80-5440

optional:variable:65-4500

optional :variable:65-3750

Auto.quill feed

Threesteps :0.04(0.0015)/0.08(0.003)/0.15(0.006)

Spindle motor

2.25kw/3hp

3.75kw/5hp

2.25kw/3hp

3.75kw/5hp

Head swivel

90°

Head tilting

45°

Dimension of package

One miller per case

1400*1476*2030

1516*1550*2080

1566*1650*2080

1800*2016 (1650)*2180

Two miller per case

1450*1570*2080

1650*1790*2170

1720*1800*2175

1800*2200*2180

Three miller per case

1450*2180*2080

1650*2285*2235

G.W/set

1100

1160

1380

1420

1550

1590

1650

1590

1700

1750

2300
