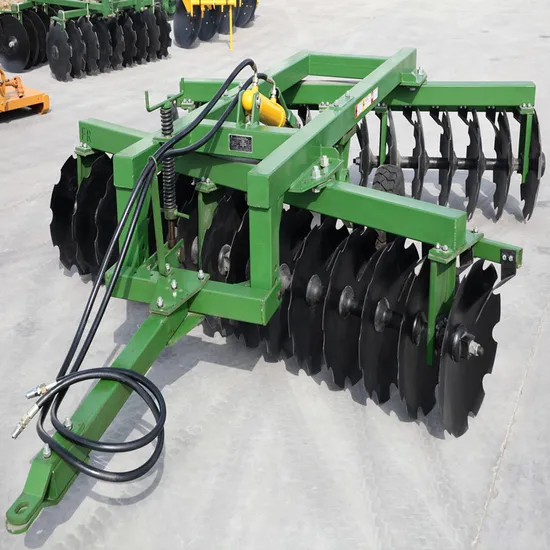

1bz-2.5 Disc Harrow (disc harrow) Heavy-Duty Disc Harrow

Product Description

Heavy-duty disc harrow
The series heavy-duty offset disc harrow are mainly used for cleaning away stubble of plants before tillage, or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change direction on the edge of fields.
Disc harrow, disk harrow.harrow disk light disc harrow,heavy duty disc harrow,disc harrow factory,disc harrow in China,high quality disc harrow,farm disc harrow
Warranty :12 month
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change direction on the edge of fields.
Technical parameters:
Specifications:

Model	Unit	1BZ-1.8	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4
Overall size	cm	480*200*134	482*244*134	532*288*134	532*332*134	582*376*134
Weight	kg	1050-1100	1250-1300	1380-1430	1500-1550	1650-1700
Working width	m	1.8	2.0	2.5	3.0	3.4
Working depth	cm	20
Disc space	mm	230
Qty. of disc	pc	16	20	24	28	32
Dia. Of disc	mm	660
Ground clearance	mm	>160
Productivity	ha/h	1.1	1.3	1.4	1.7	1.9
Matched power	hp	65-80	75-90	80-100	90-100	100-120
Linkage		Trailed

Model	Unit	1BZ-3.9	1BZ-4.4	1BZ-5.3	1BZ-6.2
Overall size	cm	582*418*136	582*465*136	716*288*150	750*656*150
Weight	kg	2400-2450	2600-2650	3250-3300	3750-3800
Working width	m	3.9	4.4	5.3	6.2
Working depth	cm	20
Disc space	mm	230
Qty. of disc	pc	36	40	48	56
Dia. Of disc	mm	660
Ground clearance	mm	>160
Productivity	ha/h	2.4	3	4	5
Matched power	hp	120-150	130-150	150-180	160-180
FOB Price	unit	4350USD	5000USD	6250USD	7200USD
Linkage		Trailed

---
