High-Performance Rubber Strip Cutting Machine with CNC Control

Product Description

Unveil the exceptional prowess of our Rubber Cutter Machine, masterfully crafted to deliver unrivaled precision in rubber strip cutting. Experience the flawless combination of high efficiency and accuracy that sets our machine apart.

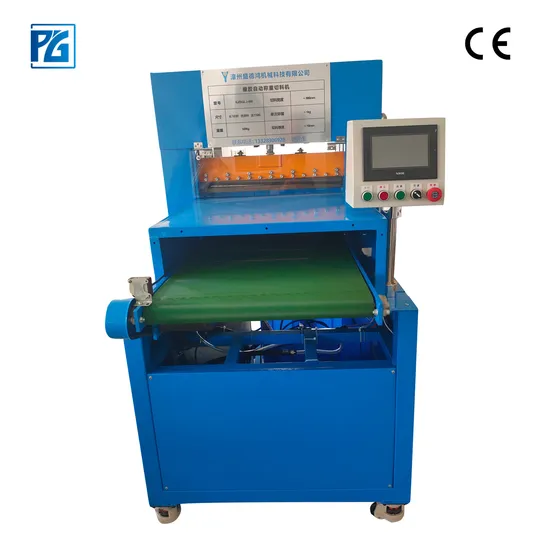

Machine Picture
Main Features Our Numerical Rubber Cutting Machine stands out with its integration of a renowned brand PLC, promising supreme precision and lightning-fast response times, ensuring your operations are seamless and top-notch. The cutting-edge feeding system, powered by a branded servo motor, is synonymous with remarkable accuracy, unwavering stability, and long-lasting performance. With a feeding precision of ±0.1mm and a weighing precision of ±0.2g for cut lengths under 20mm, it promises unrivaled results. Harnessing the power of a 3-phase slowdown brake motor, our machine delivers formidable strength and superior safety, providing a steadfast and reliable power source. Featuring imported fiber sense positioning components, our machine is not only exceptionally precise but also built to withstand the test of time with incredible durability. Effortlessly powered by a chain belt system, it is capable of cutting FKM sheets up to a hardness rating of 90ºC , delivering unrivaled ease and efficiency. Our intuitive 7-inch HMI touch screen enhances user experience with automatic counting, real-time monitoring, and immediate warning notifications, ensuring ease of use and operational efficiency. The cutting speed is meticulously controlled by a brand inverter, empowering you to make direct adjustments for optimal efficiency and performance. Safety is paramount with our innovative strip outlet safety door device, employing a dual-step protection method to guarantee the highest levels of operational safety. Our automatic material press system is designed to significantly reduce operator workload, enhancing convenience and productivity. Equipped with robust Tungsten steel W18 blades, the cutting tool boasts exceptional durability, ensuring an extended service life and remarkable cutting performance. The bevel cut design of our cutting blade minimizes resistance, enhances speed, and ensures the upper and lower blades work in perfect harmony to reduce wear and tear. All models are customizable with slitting cutters for versatile horizontal and vertical rubber sheet cuts. The slitter cutter blades are engineered for easy replacement and hassle-free maintenance.. The oil lubricant system is optimized with an automatic electromagnetic pump, ensuring minimal interruptions and automatic oil replenishment for seamless operation. Our groundbreaking design and state-of-the-art manufacturing process make the CNC rubber cutting machine exceptionally user-friendly and highly efficient.Effortlessly adjust cutting lengths and speeds during operation with the intuitive touch screen, offering unparalleled convenience and precision. Product Parameters

Technical Data of Rubber Strip Cutting & Slitting Machine
Model	PG-HA-600	PG-HA-800	PG-HA-1000	PG-HVG-600
Size	1170*1300*1400	1170*1500*1400	1170*1700*1400	1170*1300*1400
Weight	900kg	1100kg	1300kg	900kg
Cutting Direction	Horizontal	Horizontal	Horizontal	Horizontal& Vertical
Cutting width	≤580mm	≤800mm	≤1000mm	≤580mm
Cutting Length	0.1-1000mm	0.1-1000mm	0.1-1000mm	0.1-1000mm
Cutting Thickness	≤30mm	≤30mm	≤30mm	≤30mm
Blade material	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18
Feeding mode	Servo motor	Servo motor	Servo motor	Servo motor
Cut Speed	≤80/min	≤80/min	≤80/min	≤80/min
Power supply	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v
Speed Control	PLC& Inverter	PLC& Inverter	PLC& Inverter	PLC& Inverter
Operation Mode	Touch Screen	Touch Screen	Touch Screen	Touch Screen

Applications:
Expertly engineered to transform rubber sheets into strips with extraordinary speed and precision, achieving impressive efficiency and performance.
