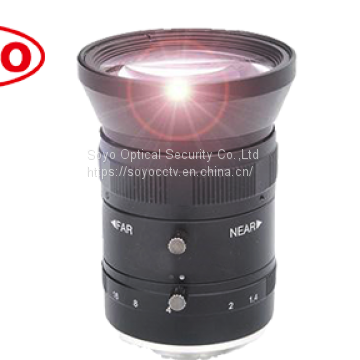

| Model | SMV0814-5M | |
| Resolution | 5.0 Megapixel | |
| IR Corrected | ||
| Format （inch） | 2/3” | |
| Focal Length （mm） | 8mm | |
| Aperture（Close） | F1.4 Manual Iris | |
| Angle of View (°) | 2/3" | 66.8×55.8×43.3 |
| 1/2" | 51.4×42.0×32.0 | |
| 1/3" | ||
| M.O.D．（m） | ||
| Size | Φ43.5*58.8 | |
| Distortion | -0.73% | |
| Mount | C | |
| Weight （g） | 170 | |
