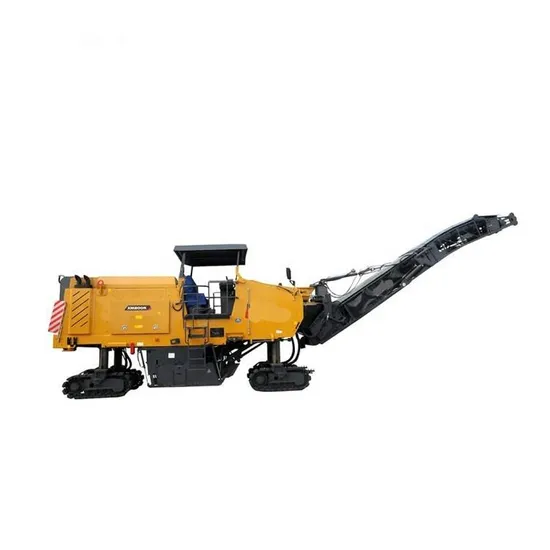

High-Performance 1.2m Wide Cold Milling Machine Xm120 for Sale

Product Description

Top Brand New Cold Milling Machine XM200
Brief Introduction of Cold Milling Machine(XM12F):
Cold Milling Machine(XM120F) is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement.One-time removal of entire concrete overlay.It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation.Cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization.It is an ideal equipment for pavement maintenance and renovation.
Features of Cold Milling Machine(XM120):
(1) Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
(2) Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
(3) The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.
(4) The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
(5) The imported hydraulic elements have high working reliability.
(6) Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
(7) Handheld breakers and rumble strip equipment can be selected.
Parameters of Cold Milling Machine(XM120):

Model			XM120
	Max.Milling with	Mm	1200
	Max.Milling depth	Mm	320
Milling wheel	Number of tools		144
	Drum diameter with tools	Mm	980
Engine	Model		QSC8.3
	Rated power	KW	209
	Rated speed	Rpm	2100
Specifications	Operating speed	M/min	0~32
	Travel speed	Km/h	0~5.2
	Gradeability	%	80
	Ground clearance	Mm	≤300
	Operating weight	Kg	21000
Volume	Fuel tank	L	660
	Hydraulic oil tank	L	120
	Water tank	L	1250
Conveyor	Width	Mm	600
Measurement	Overall machinery LxWxH	Mm	5900×2140×3000
	Conveyor LxWxH	Mm	8200×1200×1500
Travel mode			Tire

---
