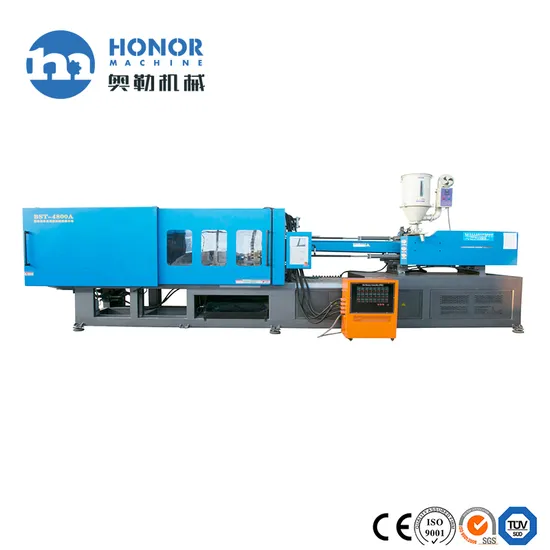

Full Automatic Fruit Vegetable Basket Machinery Plastic Making Machine Injection Molding Machine

Product Description

Full Automatic Fruit Vegetable Basket Machinery Plastic Making Machine Injection Molding Machine
Specifications
Injection molding machine
1.Big tie bar space and shot weight capacity
2.Most famous component parts
3.Perfect after-service
FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure,
speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium
and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of
response, and makes the whole machine reach the best performance.

SERVO SYSTEM
After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the
actual pressure and flow feedback, and rectify the difference by controlling the rotating speed of the servo motor.
In this way, the control of injection molding is not only acurate but also fast, and the repeatabillity of the products
high as well.
automatic injection molding machine

MODEL	Unit	HM-1000		HM-1320		HM-1400		HM-1650		HM-1800
INJECTION UNIT		A	B	A	B	A	B	A	B	A	B
Screw diameter	mm	36	38	38	40	38	40	42	45	45	48
Shot size(theoretical)	Cm³	143	180	210	228	256	280	318	362	372	420
Shot weight	g	128	162	188	205	230	252	286	326	335	378
Injection pressure	Mpa	183	164	176	160	176	160	174	151	168	148
Injection rate	g/s	90	98	95	100	95	100	135	155	142	160
Screw L/D ratio	L/D	21.6	20.5	22.8	21.7	23.4	22.2	22.3	20.8	23.1	21.7
Screw speed	r.p.m	0-190		0-190		0-190		0-190		0-180
Nozzle Diameter	Srmm	10		10		10		10		20
CLAMPING
Clamp tonnage	KN	1000		1320		1400		1650		1800
Toggle stroke	mm	320		350		365		405		440
Mould Thickness	mm	150-400		150-420		150-420		170-440		180-470
Space between tie-bars	mm	385X350		410X375		428X386		455X425		480X460
Ejector stroke	mm	125		135		140		155		155
Ejector tonnage	KN	50		50		50		70		70
Ejector number	Piece	5		5		5		5		5
Hole Diameter	mm	100		100		100		125		125
OTHERS
Heat power	KW	7.6		8.2		8.2		8.2		11
Max. pump pressure	MPa	16		16		16		16		16
Pump motor power	KW	11		13		13		15		15
Valve Size	mm	10		10		10		16		16
Machine dimension	m	4.3X1.5X1.6		4.5X1.6X1.7		4.8X1.6X1.7		5.0X1.6X1.7		5.3X1.6X1.75
Machine weight	t	3.4		3.9		4.2		5		5.5
Oil tank capacity	L	180		200		220		250		250

MODEL	Unit	HM-2050		HM-2300		HM-2600		HM-3000		HM-3400
INJECTION UNIT		A	B	A	B	A	B	A	B	A	B
Screw diameter	mm	45	48	50	52	54	56	56	58	58	60
Shot size(theoretical)	Cm³	460	525	608	658	720	770	788	845	858	918
Shot weight	g	415	472	546	592	650	690	709	760	772	826
Injection pressure	Mpa	188	165	184	170	190	178	178	166	180	168
Injection rate	g/s	140	159	160	176	200	215	210	226	254	272
Screw L/D ratio	L/D	22	20.6	22.8	21.9	22.5	21.6	21.6	21	22.2	21.5
Screw speed	r.p.m	0-180		0-180		0-180		0-180		0-180
Nozzle Diameter	Srmm	20		20		20		20		20
CLAMPING
Clamp tonnage	KN	2050		2300		2600		3000		3400
Toggle stroke	mm	445		480		530		560		580
Mould Thickness	mm	190-470		200-510		200-550		220-600		270-650
Space between tie-bars	mm	490X464		510X510		554X554		580x580		640X640
Ejector stroke	mm	155		155		160		160		160
Ejector tonnage	KN	70		70		70		80		80
Ejector number	Piece	5		9		9		9		13
Hole Diameter	mm	125		160		160		160		160
OTHERS
Heat power	KW	11.6		11.6		15.5		15.5		17.5
Max. pump pressure	MPa	16		16		16		16		16
Pump motor power	KW	17		18.5		25		25		30
Valve Size	mm	16		16		16		16		25
Machine dimension	m	5.4X1.6X1.75		5.7X1.8X2.0		6.1X1.7X1.8		6.5X1.8X1.8		6.7X2.0X1.9
Machine weight	t	6		6.5		8		9		10.8
Oil tank capacity	L	270		300		350		370		400

MODEL	Unit	HM-3850		HM-4500		HM-4800		HM-5200		HM-5500
INJECTION UNIT		A	B	A	B	A	B	A	B	A	B
Screw diameter	mm	63	65	73	75	76	78	82	85	85	90
Shot size(theoretical)	Cm³	1120	1192	1590	1680	1766	1860	2200	2360	2418	2710
Shot weight	g	1008	1072	1430	1512	1590	1670	1980	2130	2200	2466
Injection pressure	Mpa	175	165	160	152	158	150	160	149	167	149
Injection rate	g/s	320	340	358	378	398	420	465	500	482	541
Screw L/D ratio	L/D	22.7	22	21.2	20.6	20.7	20.2	20.5	19.8	21	19.8
Screw speed	r.p.m	0-160		380		0-160		0-150		0-150
Nozzle Diameter	Srmm	20		0-180		20		20		20
CLAMPING
Clamp tonnage	KN	3850		4500		4800		5200		5500
Toggle stroke	mm	660		700		710		730		820
Mould Thickness	mm	280-680		280-710		280-750		290-780		350-820
Space between tie-bars	mm	680X680		720X720		750X720		770X740		810X810
Ejector stroke	mm	160		160		180		200		210
Ejector tonnage	KN	80		85		125		125		150
Ejector number	Piece	13		13		13		13		13
Hole Diameter	mm	160		160		200		200		200
OTHERS
Heat power	KW	17.5		20.5		23.4		28.1		33
Max. pump pressure	MPa	16		16		16		16		16
Pump motor power	KW	30		37		15+25		18.5+25		55
Valve Size	mm	25		25		cartridge valve		Cartridge Valve		Cartridge Valve
Machine dimension	m	7.0X2.2X2.0		7.3X2.3X2.4		8.3X2.2X2.2		8.6X2.2X2.25		8.6X2.2X2.7
Machine weight	t	11.5		13.8		16.3		20		23
Oil tank capacity	L	400		450		600		750		1000

MODEL	Unit	HM-5800		HM-6500		HM-7500		HM-8500		HM-11000
INJECTION UNIT		A	B	A	B	A	B	A	B	A	B
Screw diameter	mm	84	86	90	92	103	105	105	108	120	125
Shot size(theoretical)	Cm³	2480	2600	3050	3190	4230	4400	4670	4840	6670	7200
Shot weight	g	2230	2340	2745	2870	3810	3960	4200	4350	6000	6480
Injection pressure	Mpa	152	145	159	152	152	146	149	141	159	146.5
Injection rate	g/s	482	506	560	592	700	730	780	830	900	976
Screw L/D ratio	L/D	20.6	20	20	19.6	21	20.6	21	20.4	20.8	20
Screw speed	r.p.m	0-150		0-120		0-110		0-100		0-100
Nozzle Diameter	Srmm	20		20		25		25		25
CLAMPING
Clamp tonnage	KN	5800		6500		7500		8500		11000
Toggle stroke	mm	760		880		950		980		1100
Mould Thickness	mm	290-810		350-860		400-960		400-980		500-1150
Space between tie-bars	mm	800-774		860X819		961X961		1016X980		1230X1105
Ejector stroke	mm	200		220		260		260		300
Ejector tonnage	KN	125		160		180		186		210
Ejector number	Piece	13		13		21		21		21
Hole Diameter	mm	200		200		250		250		250
OTHERS
Heat power	KW	28.1		37.1		40.9		42.5		63
Max. pump pressure	MPa	16		16		16		16		16
Pump motor power	KW	18.5+30		25+30		30+37		37+37		128
Valve Size	mm	cartridge valve		cartridge valve		B		cartridge valve		cartridge valve
Machine dimension	m	8.75X2.2X2.3		9.2X2.2X2.4		10.7X2.3X2.7		11X2.4X2.75		14X2.9X4.1
Machine weight	t	21.8		26		38		45		63
Oil tank capacity	L	850		1000		1200		1300		1800

Honor Machine provides the wide range of liquid filling capabilities and industry experience while delivering the lower cost of ownership for our customers. We are not only a filling equipment manufacturer, but also design and build factories, equipment layout, circuit layout and equipment operation schemes. Our equipment is designed carefully, easy to use and easy to manage. Whether you need a machine or a complete filling and packaging system, we have rich experience to ensure the successful completion of your project. Since 2008, Honor Machine has been one of the leading suppliers of packaging technology. Located in the beautiful city of Zhangjiagang, Jiangsu Province, a new port city famous for professional industrial city. We are committed to:

Q1.How to tell us your enquiry?A1:You can contact us by email, phone call, Instant Messenger (Trademanager, WhatsApp, Skype) and let us know your requirement. Q2.Where is your factory?A2:Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory. Q3. Do you have any technical supports with your Beverage Filling Machines?A3:Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas. Q4.What's your guarantee or the warranty of the quality if we buy your machines?A4:We offer you high quality machines with 2 years guarantee and supply life-long technical support. We Warmly Welcome Customers All Over The World To Our Company If You Have Interests In Our Products. Please Contact Us If You Have Any Problems.You can contact us by email, phone call, Instant Messenger (Trademanager, WhatsApp, Skype) and let us know your requirement.

---
