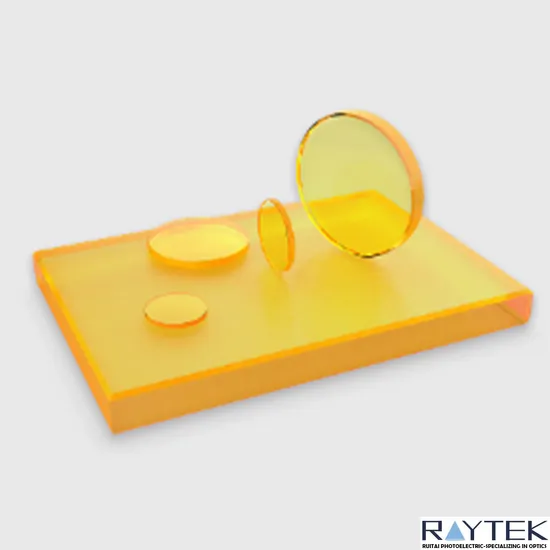

CVD Zinc Selenide/Zinc Selenide Lens/Optical Substrate

Product Description

General Introduction:
Zinc selenide (ZnSe) is an optically inert material with high purity, strong environmental adaptability and easy processing. It has low transmission loss and good light transmission performance. Zinc selenide material has high transmittance in 600nm-16μm band, low absorption and thermal shock resistance, so it is the preferred material for high power CO2 laser optical components.
Due to its good refractive index uniformity and consistency, the infrared material is also an ideal material for protecting Windows and optical components in current infrared (FLIR) thermal imaging systems. At the same time, zinc selenide materials are also widely used in medical and industrial thermal radiation meter and infrared spectrometer window and lens.
Main Characteristics:
1).The chemical properties of CVD ZnSe Of Germany IR and NIR matrials are inert;
2). It has non hygroscopicity and high purity;
3). Very compact and easy to machine;
4). It has good absorption and scattering ability;
5).The volume loss of this material is very low,
6).It has high tolerance to thermal shock;
7).It can maintain its stability under almost all environmental conditions.
8).Round blanks and sheets are available in stock to meet your urgent needs
Thermal Properties:

Items	Value
Coefficient of Thermal Expansion [K-1] @273K 7.1 x 10-6 [K-1] @373K 7.8 x 10-6 [K-1] @473K 8.3 x 10-6	[K-1] @273K 7.1 x 10-6 [K-1] @373K 7.8 x 10-6 [K-1] @473K 8.3 x 10-6
Thermal conductivity [JK-1m-1s-1] @298K	18
Heat capacity [Jg-1K-1] @298K	0.339

Mechanical Properties:

Items	Value
Hardness: Knoop, 50g load [kg mm-2] 110 Vickers, 1kg load [kg mm-2]	110 112
Flexural strength (modulus of rupture) 4pt. loading [psi] 4pt. loading [MPa]	8 x 103 55
Fracture toughness (critical stress intensity factor, KIC values) [MPa m, Vickers, 100g]	0.5
Posssion's Ration u	0.343
Young's modulus [psi] [GPa]	9.75 x 106 67.2
Poisson's ratio	0.28
Crystal structure	Cubic
Grain size	50-70um
Density [g/cm-3] @298K	5.27
Resistivity [ cm]	~1012
Chemical purity [%]	99.9996

Optical Properties:

Items	Value
10% transmission limits (t=6mm)	0.5μm - 22μm
Index of refraction inhomogeneity (Dn/n)	<3ppm @633nm
Thermo-optic coefficient dn/dT (298-358K) K-1 @ 0.6328μm K-1 @ 1.15μm K-1 @ 3.39μm K-1 @ 10.6μm	1.07 x 10-4 7.0 x 10-5 6.2 x 10-5 6.1 x 10-5
Bulk absorption coefficient cm-1 @ 1.3μm cm-1 @ 2.7μm cm-1 @ 3.8μm cm-1 @ 5.25μm cm-1 @ 10.6μm	5.0 x 10-3 7.0 x 10-4 4.0 x 10-4 4.0 x10-4 5.0 x 10-4

Main Applying Fields:
1).High energy CO2 laser system
2).High resolution forward looking infrared (fur)
3).Protection window of thermal imaging equipment
4).Small size windows and lenses for medical and industrial applications, such as thermometers and spectrometers.
5). Evaporation source material
Matching Custom Manufacturing Serivce:
Including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
Matching processing equipments;
1).Single side lapping and polishing machines
2).Duble sided polishing machines
3).Ring throwing machines
4).DMG five-axis five-linkage spherical milling machine
5).DMG ultrasonic machining center
6).Super large scale gantry cnc machining center (2.0*2.0m)
7).Super large scale surface grinder (1.6m*1.6m)
8).CNC cutting machines
9).Thin plate cleaning machines
10).Ultrasonic trough cleaning machines
11).Plane interferometers
12).Two dimensional detectors
13).Ion beam polishing machines
14).Magnetorheological polishing equipments
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy--return, replace & refund policy.
For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.

---
