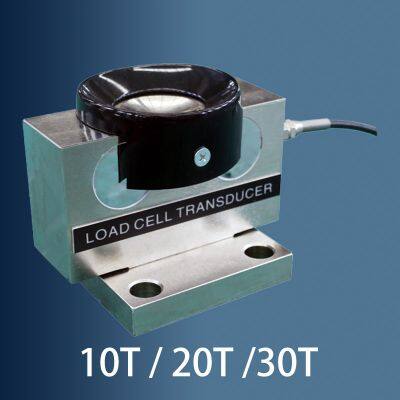

shortbridge type load cell weight sensor 30 ton capacity alloy steel

Product Details

Product Description

Product Description
l made of alloy steel
l adopting laser welding seal or rubber seal treatment
l nickel plated surface, waterproof, anti-corrosion, suitable for various working conditions
l suitable for truck scale, railway scale, etc.

Technical parameters
Model: JFL-19QS		Material: good quality alloy steel
Capacity: 10T-30T		Output resistance:700±3Ω
Output sensitivity:2.0±10%MV/V		Input resistance: 750±10Ω
Zero point output:±1%FS		Comprehensive error:≤±0.03%
Nonlinear: 0.03%FS		Repeatability: 0.03%FS
Excitation voltage:5-15V		Working temperature range: -20℃ to +70℃
Safe overload:150%		Ultimate overload:200%
Cable: φ5.7x16m, φ5.7x12m		Insulation resistance:≥5000MΩ
Cable connection: red: Power + black: Power - green: signal + white: signal - (can be 6 core wire)

---
