Automatic Potato Loading and Unloading Machine

Product Description

Product Description
Basic Info.

	4UDS-90 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	10	Type of excavation device	Movable Shovel
2	Working Size (length*width*height)	2900*3000*1700mm	11	Blade Material	65Mn
3	Transport Dimensions (length*width*height)	2900*2200*2300mm	12	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	775kg	13	Depth Limiting Mechanism Type	Central Pull Rod
5	Working Width	900	14	Conveyer Type	Belt type
6	Operation Efficiency	≥0.13 ha/h	15	Conveyor Chain Clearance	45mm
7	Supporting Power/Machine Horsepower	≥70HP	16	Chain Bar Material	55CrSi
8	Matched To The Power Output Shaft Speed	540r/min	17	collection method	Instant loading
9	Matching Hanging Width	600mm	18	Collection height	≤1500mm
Note: The values in the specification table are theoretical values, please refer to actual values.

Product Description

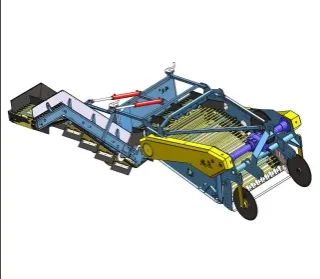

Automatic vehicle loading and receiving machine
1.High - efficiency operation: It can quickly clear stones in the fiEfficient Harvesting: It can directly load the harvested potatoes onto the vehicle, greatly improving the harvesting efficiency.

2.Low Damage Rate: With ingenious design, it can effectively avoid damaging potatoes during the harvesting and conveying process, thus increasing the rate of commercial potatoes.

3.Strong Adaptability: It can adapt to different soil conditions and planting scales. Some models can even operate in complex terrains such as mountains and hills.

4.Stable Operation: The structure is simple and reasonable. It performs stably during the working process, reduces the occurrence of malfunctions, and has a long service life.

Detailed Photos
Certifications
Packaging & Shipping
Detailed PhotosProduct ParametersPackaging & Shipping

Company Profile
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.
Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.

Our main products include five series of more than 55 varieties, such as potato harvester machines, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and seeding killer machines.

The company has passed the ISO9001-2008 quality system certification. We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery. We warmly welcome both new and old.

We have an old factory area and a new factory area under construction for producing and processing machines. There are finished product stacking area, machine processing area and production workshop. Our Advantages
