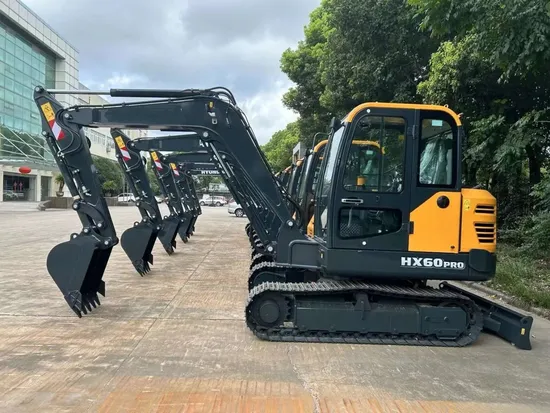

Mini CE 6 Ton Hx60 PRO Hydraulic Digger Crawler Excavator with Spare Parts

Product Description

Product Description
Mini Modern 6 ton HX60 PRO HX65A Hydraulic Track Digger Crawler Excavator with Spare Parts
Engine 4TNV94L (Tier 4) The engine delivers a power of 36.2 kW (48.5 HP)/2200 rpm, with a maximum torque of 200.8 Nm/1400 rpm. This means the HX60PRO engine operates at maximum power, providing customers with greater and stronger power to accomplish tasks. Note: The engine is suitable for operation at altitudes below 1200 meters. Breaking Pipelines The HX60PRO comes standard with a breaking pipeline, facilitating breaking operations. Genuine OEM pipelines ensure product quality and extend equipment lifespan. LED Work Lights, Improving Nighttime Operation Efficiency Equipped with standard LED work lights, enhancing illumination brightness, ensuring nighttime operation safety, and improving overall operational efficiency. Lifetime Maintenance-Free Swing Motor Lubricated through hydraulic oil system, eliminating the need for grease lubrication and gear oil, reducing maintenance time and costs. Lifetime Maintenance-Free Air Pre-filter Utilizing a reversible pre-filter that can self-discharge dust, eliminating the need for regular maintenance. Three-Stage Fuel Filtration System Enhances equipment compatibility with lower-quality fuels, thereby increasing the engine's lifespan.
Product Parameters
Mini Excavator
HX60Pro
Operation Weight: 6080-6460 kgEngine Model: Hyundai DM02VBEngine Power: 48.5 kWBucket Capacity: 0.18 cubic meter

Operating Weight	5,900 kg
Bucket Capacity	0.12-0.28 m³
Engine	4TNV94L
Gross Power	39 kW (52.3 hp) @ 2,200 rpm
Net Power	36.1 kW (48.4 hp) @ 2,200 rpm
Peak Torque	211.7 N•m @ 1,320 rpm
Travel Speed	High:3.9 km/h Low: 2.5 km/h
Drawbar Pull	51 kN
Swing Speed	9.2 rpm
Arm Breakout Force, max, ISO	31 kN
Bucket Breakout Force, max, ISO	41 KN
Maximum Dig Depth	3,875 mm
Reach at Ground Level	6,065 mm
Depth of 8' Level Bottom	3,450 mm
Maximum Dig Height	5,790 mm
Dump Height	4,135 mm
Maximum Dig Depth of Vertical Wall	2,940 mm
Overall Length	5,900 mm
Overall Width	1,900 mm
Overall Height	2,630 mm
