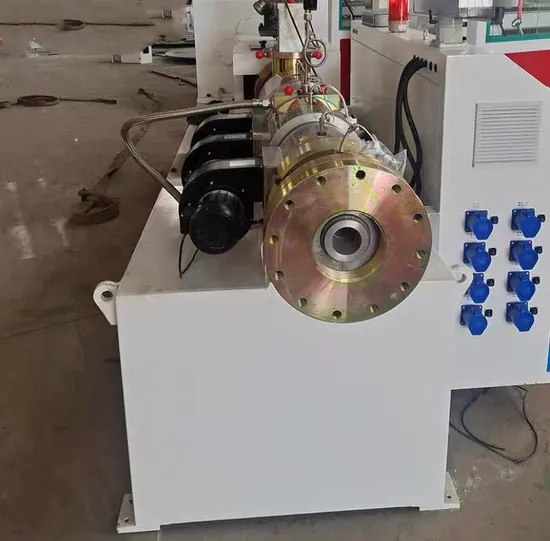

Ruihang Saving Energy Conical Twin Screw Extruder Production

Product Description

Product introduction:
An efficient mixing and extrusion equipment occupies an important position in the plastic processing industry, and is one of the important equipment for plastic processing enterprises to improve production efficiency and ensure product quality .
Main features:
The machine has the characteristics of small shear rate, material is not easy to decompose, plasticizing and mixing uniform, stable quality, high yield, wide range of application, long service life and so on.
Device parameter

Type	SJSZ45/90	SJSZ51/105	SJSZ55/110	SJSZ65/132	SJSZ80/156	SJSZ92/188
Transmission power (kw)	15	18.5	22	37	55	110
Screw diameter (mm)	Φ45/Φ90	Φ51/Φ105	Φ55/Φ110	Φ65/Φ132	Φ80/Φ156	Φ92/Φ188
Number of screws	2	2	2	2	2	2
Revolving speed (r/min)	45	40	38	38	37	36
Screw torque Nm	3148	6000	7000	10000	14000	32000
Extrusion output(kg/h)	70	100	150	250	400	750
Height of center(mm)	1000	1000	1000	1000	1100	1200
Length x Width x Height(mm)	3360x1290x2127	3360x1290x2127	3620x1050x2157	3715x1520x2450	4750x1550x2460	67250x1550x2814

Product Details
High application efficiency
Simple product structure, stable operation and reduced noise during operation.
Multi-Industry Applications
Mostly used in automatic production lines, machinery manufacturing, automation control, etc.
Easy operation
Centralized and automatic control of the production process, easy to operate.
Stable quality
Small shear rate, materials are not easy to decompose, even plasticizing and mixing.

---
