Automatic Aluminum Corrugated Galvanized Steel Wave Shape Panel Wall Roof Iron Roofing Sheet Making Roll Former Forming Machine for Sale

Product Description

Product Description

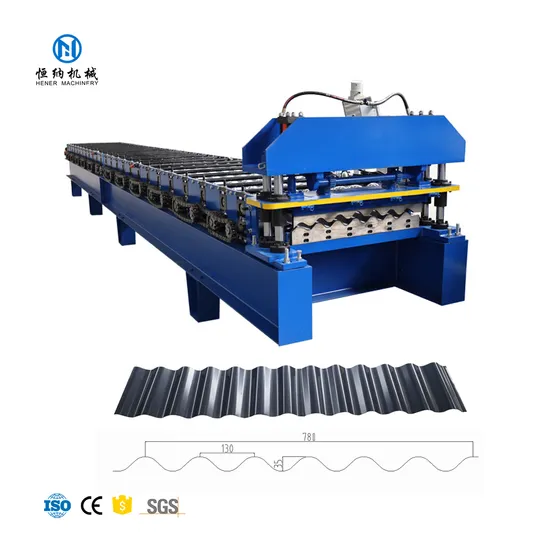

Automatic aluminum corrugated galvanized steel wave shape panel wall roof iron roofing sheet making roll former forming machine for sale
The corrugated roll forming machine serves as a vital tool in manufacturing corrugated metal sheets, extensively used in construction for roofing, wall cladding, and shielding agricultural and industrial structures. Renowned for their robustness and resilience, these sheets are integral to diverse construction and engineering ventures.
Profile drawing for reference:
Roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers' demand.
Processing Flow:
Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table

Automatic Aluminum Corrugated Galvanized Steel Wave Shape Panel Wall Roof Iron Roofing Sheet Making Roll Former Forming Machine for Sale
Raw Material	PPGI,PPGL
Material Thickness	0.3 - 0.8mm(31-21 Gauge)
Machine Frame	350mm H Beam Structure, With 18 mm Welded Steel Middle Support Plate.
Material Of Rollers	High Grade 45# Forged Steel. Chromed Treatment (Chrome Thickness:0.05 Mm), Make The Rollers Surface More Smoothly, Improve The Hardness And Prevent Abrasion,Anti Corrosion Increase Of Service Life
Diameter of shafts	Φ75mm
Material of shafts	45# Steel Thermal Refining, Prevent Deformed And Improve The Hardness
Forming speed	About 15m/min
Voltage	380v 50hz 3phase Or As local customer request
Work power	9.5 kw
Cutting type	Hydraulic cutting
Cutting blade material	Cr12Mov, with acutting lifespan exceeding 1 million times.

Feeding Device
1. There are 2 rollers at the feeding device, which can be rotated to reduce the friction of the feeding and avoid scratches on the surface of the material.
2.Touch stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface.
3. With a hand wheel to adjust the feeding width, making the feeding more accurate.
4. With broach, it is convenient to cut material

Roll Forming Device
1. Frame:350H steel
2. Roller stations:18+16 stations
3. Roller materila:45# steel with quenched treatment and hard chroming
4. Shaft material:45# steel with tempering treatment
5. Motor power:5.5kw
Our machine use very thick material to manufacturing the machine basic frame, ensure very stable when it running.
The machine especially add diagonal bracing to make sure stability.
Automatic Shearing System
1. Utilizing a dual oil cylinder system for enhanced stability over single cylinder setups.
2. Hydraulic motor rated at 5.5 kW, equipped with an energy accumulator.The cutter is constructed from GB-Cr12 material and undergoes heat treatment.
3. Cutting length tolerance is within ±10 meters per 2 millimeters.
4. Cutting operations are characterized by a stable and safe working environment, producing minimal noise.
PLC control system
1. Structure: Cantilever-type
2. Advantages: All wiring connections are completed, preventing wiring errors during installation that could otherwise affect the
normal operation of the machine.
3. Main components origin: PLC (Delta), length encoder (OMRON), Encoder: OMRON.
4. Operation language:English(it can also customized language for our customer)
Hydraulic station
The hydraulic oil station is outfitted with 2 solenoid valves and a robust 5.5 kW motor to accommodate the machine's
high-intensity operations. It requires the addition of 46# hydraulic oil. During filling, an oil gauge display is provided,
ensuring precise measurement even if the filling volume exceeds the gauge's scale.
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

---
