Basic Info.
Application
Home, Industrial, Commercial
Transport Package
Standard Export Packing
Production Capacity
50000PCS/Year
Product Description

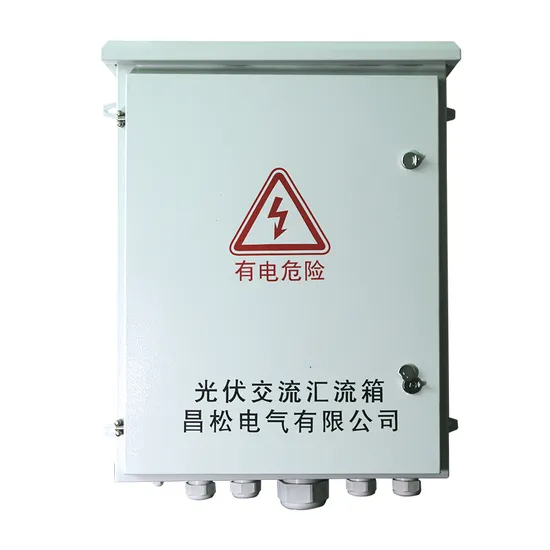

China manufacturer pv array combiner boxProduct Description For large-scale PV grid-connected power generation system, in order to reduce the connection between the PV module and the inverter, and to facilitate maintenance to improve reliability,it generally need to add DC busbar device between the PV module and the inverter. Our company's PV array lightning protection combiner box is designed to meet this requirement and can be designed to a complete PV power generation system solution with PV inverter products. Using PV combiner box, the user can put certain number of same specifications PV modules into series PV module according to input DC voltage range of the inverter, and then a number of series PV modules access to the PV array lightning protection box.It's convenient to facilitate the post-inverter through the output for lightning protection device and circuit breaker.
The PV array lightning protection box has the following characteristics:
(1) meet the requirements of outdoor installation, protection class IP65, with anti-UV, anti-acid, anti-alkali, moisture, mildew, rodent control and other functions;
(2) access PV array, each with 15A, 1000Vdc fuse (replaceable other grades);
(3) Equipped with special high-voltage lightning protection device, lightning protection function with cathode and anode ;
(4) Positive, negative string into the fuse;
(5) Use quadruple PV dedicated circuit breaker with positive and negative in series;
Part number
| description
|
1
| Negative convergence copper busbar
|
2
| detection unit
|
3
| DC MCB
|
4
| Dc positive Convergence output
|
5
| Dc negative Convergence output
|
6
| RS485 communication terminal (output point)
|
7
| Ground output point
|
8
| Lightning protection device
|
9
| Positive convergence copper
|
10
| DC positive fuse holder and fuse (each input in series with a fuse) up to 16 way
|
11
| DC negative fuse holder and fuse (each input in series with a fuse) up to 16 road
|
Figure 1: internal structure of the combiner box
3.Size
Specification
| Width(A)mm
| height(B)mm
| depth(C)mm
|
18 way
| 645
| 550
| 205
|
14,16 way
| 610
| 550
| 205
|
10,12 way
| 530
| 550
| 205
|
6,8 way
| 460
| 550
| 205
|
2,4 way
| 390
| 550
| 205
|
>>
