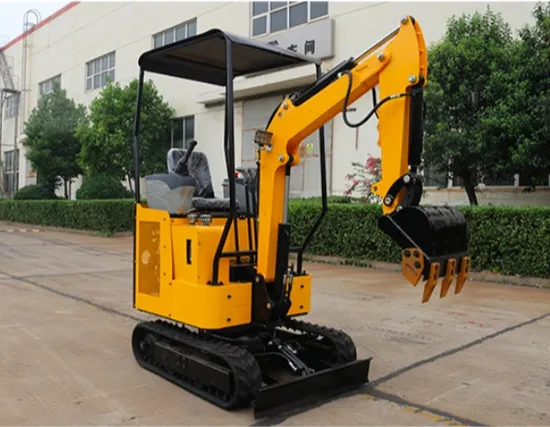

Small Hydraulic Crawler Machine Excavator Mini Excavadora Mini Bagger Digger Excavator

Product Description

Product Description
Powerful and affordable mini excavators
These mini but powerful machines are now the go-to choice for small construction projects. Due to their compact size, mini excavators can maneuver easily in places where large excavators struggle, making earthmoving easy and speeding up projects.

Detailed Photos
hydraulic pilot operate,easy to operate.

piston pump load sensitive,soft and powerful action,low engine temperature,engergy and fuel saving.
double row bead slewing support. high speed .high efficiency. more flexible and more stable.
double-rotary motor ,double rotary suport force is large.long life,play a buffer role,soft, comfortable and satble movement.
the bulldozer hlade is widened and thickened ,durable
american eaton walking motor self-braking integrated motor with high efficiency and stale operation.
hammer cut-off valve,durable and wear-resistant cast steel material,good mechanical performance,prevent oil dripping and leakage.
Product Parameters

MODEL		KV17
Bucket capacity	cbm	0.025
Chassis width	mm	1100
Track length	mm	1220
Gradeability	degree	40
Chassis ground clearance	mm	375
Track width	mm	180
Volume of fuel tank	L	18
Overall dimension	mm	2400*1100*2200
Transport length	mm	2170
Excavatr height	mm	1950
Hydraulic flow	L/Min	40
Hydradulic tank capacity	L	16
Working pressure	Mpa	16
Engine		changchai 390 diesel engine
Engine power	kw	20
Max.digging height	mm	2550
Max. dumping height	mm	1900
Max.digging depth	mm	1884
Max.digging radius	mm	3031
Turning radius	mm	1550
Bucket excavating force	KN	15
Operating weight	KG	1150
Configuration		Valve:beifang brand
		Pump:k jun brand
		load sensitive system

Application Scenario
Packaging & Shipping

After Sales Service

Small Hydraulic Crawler Machine Excavator Mini Excavadora 1.0 1.2 1.5 1.8 Ton Mini Bagger Digger Excavator Company Profile

FAQ
Q1: Are you a manufacturer?
A1: Yes. We have ourselves factory, our products are designed and developed by ourselves,have 3000 square meters factory.
Q2: What is your quality control process?
A2:We do 100% testing for all products before packing. We have an excellent QC process and department, they will check every product to make sure it can be used before shipment.
Q3: How long is your guarantee term?
A3: Our product have one year guarantee.
Q4: What's the payment way?
A4: T/T,L/C,D/P,D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash.
Q5: Do you accept ODM/OEM orders?
A5: Yes,we can accept OEM/ODM ,MOQ:5pcs you can change logo and functions if you need.
Q6: how can we guarantee quality?
A6: Always a pre-production sample before mass production;
Q7: what can you buy from us?
A7:Excavator,Forklift,Loader,Grader,Bulldozer

---
