10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer

Product Description

Product Description
10L 16L 20L 25L 30L Plant protection drone agricultural UAV sprayer
Plant protection UAV is an unmanned aircraft used for agricultural and forestry plant protection operations. This type of unmanned aircraft is composed of three parts: flight platform, navigation and flight control, and spraying mechanism. The ground remote control or navigation and flight control can realize spraying operations, which can spray agents, seeds, powder, etc.
Agricultural UAV is a variable spraying mode with flight speed adjustment, electric rotor, intelligent setting height and speed, automatic flight machine with auxiliary battery replacement and pesticide addition; operation distance varies from several hundred meters to several kilometers, including manual operation, semi-automatic operation, computer program / mobile APP control and so on.
The ultra-low altitude aerial plant protection operation of the uav system can reach a spraying range of 4-8 meters, the flight speed is about 0-12 meters / second, and the average operation time per mu is less than 1 minute.The amount of operations is 40-90 times that of traditional manual spraying.A farm drone system can replace 40-90 workers.Plant protection uav system spraying 1-3 meters above crops, avoid the drug drift, improve the drug area relatively reduce the use of pesticides by 50%, the drone rotor downward increased the fog penetration of crops, crops in the process of turbulence, leaves up and down uniform drug, make the spraying effect increased.

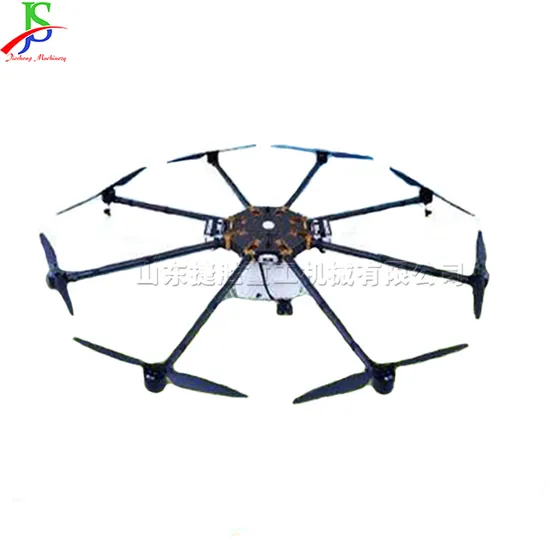

Detailed Photos

Product Parameters

model	Four axes 10L	Four axes 16L	Six axes 20L	Six axes 25L	Six axes 30L
Remote control radius	1000m	1000m	1000m	1000m	1000m
flight altitude	35m	35m	35m	35m	35m
Spray width	3-6m	3-6m	3-6m	3-6m	3-6m
Spray speed	3-6m/s	3-6m/s	3-8m/s	3-8m/s	3-8m/s
Spray efficiency	2-3 AM / min	2-3 AM / min	2-3 AM / min	2-3 AM / min	2-3 AM / min
Job height	1.5-4m	1.5-4m	1.5-4m	1.5-4m	1.5-4m
work efficiency	500 Acres / day	600 Acres / day	800 Acres / day	800 Acres / day	800 Acres / day
Net weight of the fuselage	16.85KG	20KG	25Kg	25Kg	30Kg
Expand the size	2.13*2.13*0.55m	2.5*2.5*0.7m	2.81*2.81*0.86m	2.81*2.81*0.86m	2.81*2.81*0.86m
No-load flight time	10-18min	12-20min	18-22min	18-22min	18-22min
Operation flight time	9-12min	10-13min	12-15min	12-15min	12-15min
battery capacity	1 block 16000mAh	1 block 20000mAh	1 block 22000mAh	1 block 28000mAh	1 block 32000mAh
Number of sprinkler heads	Four	Four	Four	Four	Four

Packaging & Shipping
Wooden case
Company Profile
Shandong Jiesheng Heavy Industry Machinery Co., Ltd. was established in July of 2 0 1 7, located in Jining city which near Qingdao port.
Our products mainly include Construction Machinery and Accessories, Engineering Machinery and Accessories, Road Machinery and Accessories.Agriculture Machinery, and other Machinery, etc.
We are the supplier of both foreign and domestic brands. We have the annual production capacity of 2 0,0 0 0 Pcs of Construction Machinery, 3 5,0 0 0 units of Engineering Machinery and other parts for construction machinery.
Product quality is assured from equipment, works instruction sheet, production management to quality assurance system. We can fabricate from 4 tons to 3 0 tons class for different customers with more than 4 0 equipments, including 4 units of multifunction positioners. We have more than 3 0 equipments including C N C machines. Surface treatment adopt famous brand of equipment.
The company from research and design, manufacture, production management, equipment guarantees ability and delivery speed both in the leading level. we have 6 branches in Shandong province and Shanghai city.
We are making our efforts to be an overseas oriented company. Product features prominent specialization, seriation, customization. We have been successfully exported our machines to America, Europe, Africa and southeast Asia etc.
We are keeping challenging ourselves with on-going innovation. We are doing our best to provide good services for our customers all over the world.

Our Advantages
1. 24 hours on line service, support Chinese, English, Spanish, French, German, Russian ,technical guidance.
2. When meets machine failure problem, our factory will ensure that the problem is solved within 1 hour.
3. Povide machine install video.
4. Provide logistics information, like shipping by sea, shipping by express DHL, FEDEX delivery, real-time tracking service.
5. If machine is broken ,Non-human causes,the new machine will be provided or new parts will be provided.
FAQ

Are you manufacture?
Yes. We are one of leading manufacturers
Do youhave Stockproductions to sell?
Yes,ofcourse.Butwe also offer OEM service. Please send us some drawing.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
(1) Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production schedual for punctual delivery.
(2) 20year production experience. We have over 20 years exprerience in this industry.
That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad situation to happen.
(3) Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him for all the problems and the way sames much times

---
