China Xili Factory Vertical Turret Drilling Milling Machine Xq6332 with CE Certification

Product Description

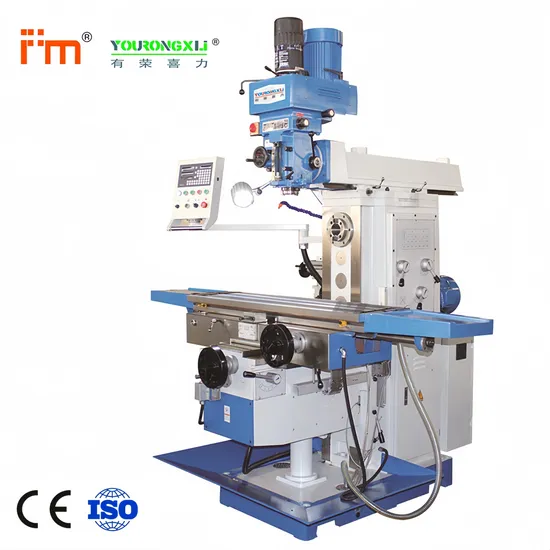

China Xili factory Vertical turret drilling milling machine XQ6332 with CE certification
Product Description
The main performance characteristics: √ Taiwan brand 5HP high speed turret head, left and right 45°swivel, with milling and drilling functions√ extra gearbox driven powerful horizontal spindle, for quick flexible change between vertical & horizontal mode√ X/Y/Z-axis feedings are driven by servo motor, good accuracy & low noise√ machine is easy to operate (as shown in figure: A knob select manual / automatic feeding mode, B lever select X/Y/Z feeding, C lever select +/- feeding direction)√ brief design control panel, easy to operate√ reasonable circult routing in electrical cabinet, easy for maintenance√ water cooling system, lubrication system are included
Product Parameters

Items	XQ6332	XQ6332A	XQ6332B	XQ6332C
Working area
Worktable size (L×W)	1270x320mm	1370x320mm	1270x320mm	1370x320mm
T slot (Width x No. x pitch)	14x3x80mm
Max. load of table	300kg
Table rotation	optional: ±45˚
Distance from horizontal spindle axis to table surface	75-475mm
Travels
Worktable longitudinal travel (X)	720mm	820mm	900mm	1000mm
Worktable cross travel (Y)	300mm (If with DRO:280mm)		380mm (If with DRO:360mm)
Worktable vertical travel (Z)	400mm
Ram travel	450mm
Spindle
Turret head spindle taper	7:24, ISO40
Turret head spindle speed	16steps 66-5440rpm
Turret head motor	5HP
Turret head swivel angle	L & R 45°
Turret head quill travel	127mm
Horizontal spindle taper	7:24, ISO40
Horizontal spindle speed	12steps 35-1500rpm
Horizontal spindle motor	3kw
Feed
Rapid feed (X/Y/Z)	1335/1335/1000mm/min
Feed range (X/Y)	30-830mm/min
Feed range (Z)	23-625mm/min
Others
Machine size (L×W×H)	1720x1680x2350mm	1820x1680x2350mm	1720x1680x2350mm	1820x1680x2350mm
Net weight	1700kg	1750kg	1750kg	1800kg

Detailed Photos
1. Standard 5HP step head,16steps 65-4660 rpm
2. 5HP / 7.5HP variable head is available, 70-3600rpm
3. X Y Z 3-axis automatic feed and rapid feed by servo motor, easy operating and low trouble rate. 4. It`s our patented product, started to produce in 2007.
5.rotary table 45 degree is available
6. ISO50 Horizontal spindle taper
7.Horizontal spindle motor: 5.5KW

Certifications
Packaging & Shipping
standard export packing: plywood case with steel pallet, inside with plastic bag on machine.
Steel pallet: 1.strong carring capacity
2.Eco-friendly and recyclable
3.Standard export package, fumigation-free
4.Flexible and convenient for transportation
Company Profile
Our factory is located in Tengzhou City, with nearly 20 years history & more than 200 employees.Products include: Gantry machining center, VMC machining center, CNC lathe,conventional manual mills (vertical, horizontal, universal, knee-type, bed-type, gantry-type etc.) Among them, about 70% of the products will be exported to Germany, Poland, Italy, France, Russia, the United States and other European and American international markets.
All products of the company have passed the international standard quality system certification ISO9001 and CE certification, please believe that we are a reliable supplier, you can fully trust our products, hope that we can establish long-term cooperation
Welcome visit our company Shandong XILI Machine Tool Co.,LTD./Tengzhou XILI Machine Tool Co.,LTD.
Address: Xingteng road, industrial area Tengzhou city, Shandong province, China.
Every year, we attend many exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
FAQ
1.What is the MOQ ? A.Our minimum order quantity is 1 set.
2. What are the main products of the company?
A. The main production of CNC machining center series (gantry, vertical, horizontal), turning and milling compound, milling machine series (CNC, lifting table, gantry, ram type) and other more than 80 varieties of specifications.
3. why should you buy from us not from other suppliers?
A. Our company has more than 20 years of experience in the field of machine tools. At the same time, with a professional R & D team, actively attract domestic and foreign advanced technology combined with independent research and development, continuous innovation. More than 140 patents have been authorized by the State Intellectual Property Office, including 14 invention patents.
4. How long is the guarantee ?
A. 12 month after machine's delivery from factory. Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. what services can we provide?
A. Accepted Delivery Terms: Usually is FOB, Others like CIF,CFR,EXW...... are also acceptable.
B. Accepted Payment Type: Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos, Other payment terms are also acceptable after discussion.
If you need any further information, feel free to contact us.

---
