Product Description
Product Description

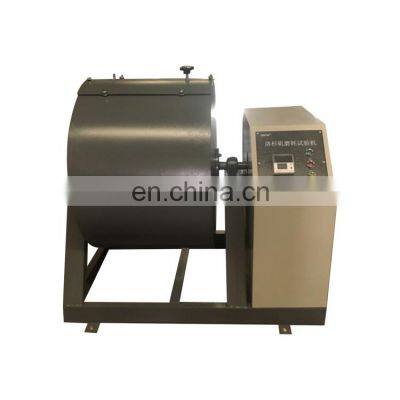

los angeles abrasion testing machine Abbrasion Machine
Product Description
This machine is mainly suitable for measuring the wear rate of stone.This machine is mainly composed of cylinders, shelves, sealing covers, gearboxes, motors, and counters.The machine is equipped with an automatic counter, which can be preset to the required number of revolutions of the drum Compelete
Product name
| LHMH-II Los Angeles Machine
|
Cylinder inner diameter × inner length
| 710mm × 510mm (± 5mm)
|
Rotate speed
| 30-33 rpm
|
Working voltage
| +10℃-300℃
|
Temperature control Accuracy
| Customized
|
Counter
| 4 digits
|
Overall dimensions
| 1130 × 750 × 1050mm (length × width × height)
|
Steel ball
| Ф47.6 (8 pcs) Ф45 (3 pcs) Ф44.445 (1 pc)
|
Power
| 750w AC220V 50HZ/60HZ
|
Weight
| 200kg
|
Using method * Install the machine on the stable smooth ground and fix it with foot wire.
* Switch on the power,make the tumbling box rotating to the positive direction
* Set the RPM according to the need.
* Put the prepared aggregated rock and steel ball into the test cylinder,seal well, tighten the screws up,start the machine. It will stop automaticall when the preset rotating time is done.Then take out the sample.
* Sieving the stone chippings in the sample with sieve of 2mm or square hole sieve with 1.6mm length.
* Wash the sample left on the sieve with clean water. Dry it to get the constant weight and weigh its weight.
* Order test results by regulations. Taking the average of the two results,but the testing error should be no more than 2% or redo the test.
Company Profile
· Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.
· We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.
· After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines,after one year, we will still supply quick and effective after sales solution.
Hot Sales
Packing and Shipping
FAQ
Q1:Are you a factory or trading company?A:We are a factory specializing in manufacturinf all kinds of tester.Q2:Where is the loading port?A:Qingdao port or tianjin port.
Q3:What’s the MOQ of the product?A:Different item has different MOQ.normally one stand is preferred.
Q4:What certificates do you have?A:We have ISO 9001.
Q5:Do you have an OEM service?A:Yes.We can provide OEM and ODM services as your requirements.
Q6:How long is the production cycle after ordering?A:General it is about 7-20 days.
Q7:What is the payment method?A:T/T payment is preferred and other payment terms is accepted.
>>
