LNG Tank Cryogenic Liquid Natural Gas Storage Tanks

Product Description

Product Description

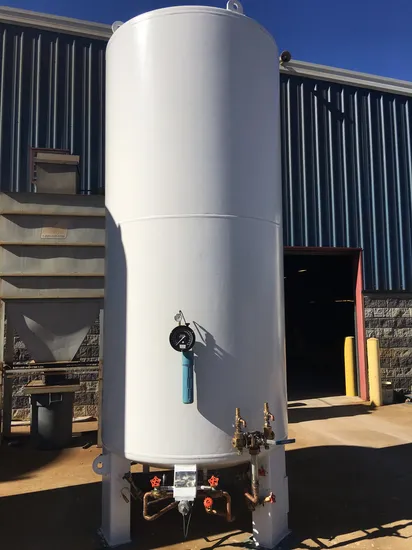

Cryogenic LNG Storage Tanks
Quick Overview:
LNG Storage Tank Main Technical Parameters:Full Volume: 10,000L~50,000LWork Pressure: 0.80MPa/1.60MPa/2.30MPa/3.45MPaFilling Rate:90%Inner Tank Design Temperature: -196Shell Tank Design Temperature: -40ºC~+50ºCInsulation: Vacuum with Multi-layer WrappedStored Medium: LNGInner Tank Material: SS304 08 or SA240Shell Tank Material: Q345R or SS304 08
Notice: GB standard cryogenic storage tanks are normally in stock, 10 days for fast delivery!!!
Brief introduction:
This series of cryogenic storage tank is a super insulated multi-layer storage tank, the inner vessel material is stainless steel SS30408, the outer vessel material is Q34SR or SS30408, can also be customized according to customers' requirements. It is mainly used for storing NG in liquid state. The product is widely used in urban peak gas supply, the main source of pipeline gas supply, automobile refueling fuel, chemical industry, heating and other industries, and has been favored and praised by customers for many years. praised by customers for many years.
Main Features:
The LNG storage tank is equipped with liquid inlet pipelines at the top and bottom to realize the unloading and filling of differential pressure and cryogenic liquid pump. A double safety valve (or bursting disc) is set to discharge in case of overpressure to protect the safety of the inner container. Vacuumize and measure the vacuum pipeline, ensure the insulation performance of the interlayer, and the explosion-proof device of the shell can discharge gas in case of leakage of the inner container to avoid serious damage and danger. It has the advantages of large reserves, low evaporation rate, safety and reliability.

Product Parameters

LNG Cryogenic Storage Tank Technical Specification
Geometric Volume	Geometric Volume	Work Pressure (MPa)	Liquid Gases Weight (kg)	Tare Weight (kg)	Inner vessel	Outer vessel	Overall Dimensions (mm)
Vertical	10	≤0.80	3829	4012	SS30408	SS30408/Q345R	5800*2112*2196
		≤1.60		4112
		≤2.30		4527
		≤3.45		5360
	20	≤0.80	7916	7441	SS30408	SS30408/Q345R	10320*2196*2196
		≤1.60		7921
		≤2.30		8696
		≤3.45		10251
	50	≤0.80	20235	14221	SS30408	SS30408/Q345R	5975*2135*2077
		≤1.60		16860
Horizontal	10	≤0.80	4043	4112	SS30408	SS30408/Q345R	6080*2362*2200
		≤1.60		4203
		≤2.30		4679
		≤3.45		5634
	20	≤0.80	7915	5238	SS30408	SS30408/Q345R	10495*2362*2200
		≤1.60		5329
		≤2.30		6182
		≤3.45		7894
	50	≤0.80	20235	16396	SS30408	SS30408/Q345R	11200*3200*3500
		≤1.59		19587
Note: The above technical parameters may be changed without prior notice due to modification and development. If there is any change, please refer to the confirmed drawing.

Detailed Photos
We pay more attention to each detail for high quality product.
Production Process
Strict quality control for longer service life.
Packaging & Shipping
Cryogenic storage tank will be packaged by waterproof plastic woven clothes, and loaded into container or by bulk ship.

Company Profile
FAQ
1. Are you a manufacturer or a trading company?
Answer: We are Chinese professional manufacturer for cryogenic liquid gas storage tanks over 46 years.
2. Is there dicount if with large qty.?
Answer: Sure, we will provide you best competitive price as per your working needs, and big dicount with more qty.
3. What's your main product?
Answers: We have cryogenic storage tanks for liquid O2, liquid Ar2, liquid N2, and Liquid CO2, both vertical type and horizontal type.
Also we have smaller type liquid nitrogen containers with various volumes from 2L to 100L.
4. Can I visit your company?
Answer: Yes, of course, you are welcome to visit our company for face to face meeting.
5. How shall I contact you for price?
Answer: Please send us inquiry.

---
