IEC 60502 600/1000V 3 Phase 4 Core Low Voltage XLPE Insulated PVC Sheathed Armoured Flexible Electrical Power Cable Electric Cable Supplier (YJV/YJV22-0.6/1KV)

Product Description

Product Description
3 phase XLPE PVC Insulated Armoured flexible Low Voltage 4 core Electric Cable for Power
1.Application
XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting aiti-chemical, corrosion, and simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction. Various of flame-retardant XLPE cable can be manufactured with three technology. The flame-retardant cable covers all kinds of low-smoke, halogen free, and non-smoke non-halogenated and three classes of A,B,C.

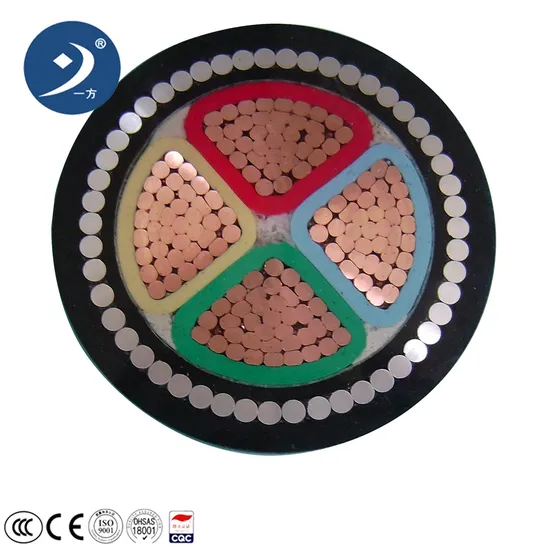

Detailed Photos

Click the Latest Price
2.Construction
Type No. of Core Nominal cross-section

Type	No. of Core	Nominal cross-section
Cu(AL)/XLPE(PVC)/PVC(PE) Cu(AL)/XLPE(PVC)/ATA/PVC(PE)Cu(AL)/XLPE/AWA/PVC(PE)	1	1.5-1000
Cu(AL)/XLPE(PVC)/STA/PVC(PE) Cu(AL)/XLPE(PVC)/SWA/PVC(PE)	2,3,4,5	1.5-400
	3+1,4+1,3+2	2.5-400

Cross-section area of neutral conductor
In 3+1cores and 3+2cores should conform to specification of following table:

Nominal cross-section	Main core	2.5	4	6	10	16	25	35	50
	Neutral core	1.5	2.5	4	6	10	16	16	25
Nominal cross-section	Main core	70	95	120	150	185	240	300	400
	Neutral core	35	50	70	70	95	120	150	185

CHARACTERISTICS
3. Characteristic
D.C Resistance of finished cable at 20ºC per km is not more than the following:

Nominal cross-section mm2	15	2.5	4	6	10	16	25
Cu core	12.1	7.41	4.61	3.08	1.83	1.15	0.727
Al core	18.1	12.1	7.41	4.61	3.08	1.91	1.20
Nominal cross-section mm2	35	50	70	95	120	150	185
Cu core	0.524	0.387	0.268	0.193	0.153	0.124	0.0991
Al core	0.868	0.641	0.443	0.320	0.253	0.206	0.164
Nominal cross-section mm2	240	300	400	500	630	800	1000
Cu core	0.0754	0.0601	0.0470	0.0366	0.0283	0.0221	0.0176
Al core	0.125	0.100	0.0778	0.0605	0.0469	0.0367	0.0291

Voltage test:
Each drum of finished cable should withstand power frequency voltage 3.5kV for 5 minutes,the insulation is not breakdown.
Service conditions and operation parameters of Cable:
The cable is applied to fixed installation for rated voltage 0.6/1kV of power transportation and distribution line.
Max. rated temperature of conductor. nominal operating 90ºC
Short circuit: max. for 5 sec.250ºC
The cable can be laid without drop restriction, and the environment temperature shall not be lower than 0ºC. 4.Standards
Our XLPE cable can be manufactured according to to IEC 60502,IEC60332,IEC60754.
Some indexes are superior to above international standard.
PS: we also can produce as per the BS, NFC, ASTM standard according to customer's request. Product Parameters
5.Drawing
Packaging & Shipping

Company Profile
Yifang Electric Group Inc. mainly specialized in wires&cables, including designment, production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Certifications

FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
If you want to know more details or get price, please Click the Latest Price

---
