US$42,100.00-43,300.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Max. Swing Dia. Over Bed
560mm
Max. Swing Dia. Over Slide
300mm
Max. Turning Length
450mm
Spindle End Type
A2-6/A2-8
Spindle Max. Bar Through Dia.
51/74mm
Spindle Motor Powerthrough Dia.
11kw
Spindle Chuck Size
8′′/10′′chuck
Repeat Positioning Accuracy(X/Z)
0.005mm
Tool Turret Type
12t Bmt55 Powered Tool Turret with Y Axes
Transport Package
Plywood Case/Steel Pallet
Specification
2600*1800*1900mm
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

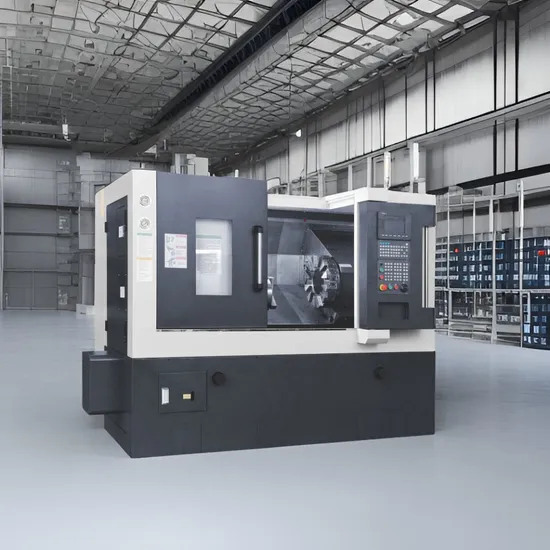

Product Description
- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt 30°integral slant bed design
- X,Z axes adopt 45mm big width linear guideway,super high rigidity
- Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,
high speed,wide adjustment range
- Spindle adopt double line ROLLER type bearing, high rigidity, suitable for heavy cutting
- Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager,
no gap,high transmission rigidity
- H50T mount 12T hydraulic-servo tool turret
- H50TC mount C axes and 12T Powered tool turret
- H50TY mount C axes and 12T Powered tool turret with 90°Y axes
| Item | Specification | Unit | BL-H50T | BL-H50TC | BL-H50TY |
| Capacity | Chuck size | / | 8''(10''*,12''*) |
| Max. swing dia. over bed | mm | Φ560 |
| Max. swing dia. over saddle | mm | Φ300 |
| Max. turning length | mm | 485(8'' chuck);
475(10'' chuck*);
440(12'' chuck*) | 355(8'' chuck); | 450(8'' chuck) |
| Max. turning dia. | mm | Φ400 | Φ290 | Φ330 |
| Standard turning dia. | mm | Φ200(8'' chuck);
Φ250(10'' chuck*);
Φ300(12'' chuck*) | Φ200(8'' chuck) | Φ200(8'' chuck) |
| Spindle | Spindle bore | mm | Φ66(Φ86*) |
| Spindle end type | / | A2-6(A2-8*) |
| Spindle speed | rpm | 4000(3500*) |
| Max. bar through dia. | mm | 51(74*) |
| Spindle motor power | kw | 11(15*) |
| X/Z axes | X/Y/Z axes linear guideway type | / | BALL type |
| X/Y/Z axes linear guideway width | mm | 45/30/45 |
| X/Y/Z axes ball screw O.D. | mm | Φ32/Φ32/Φ40 |
| X/Y/Z axes ball screw pitch | mm | 10 |
| X axes travel | mm | 230 | 250 | 220 |
| Y axes travel | mm | / | / | 90 |
| Z axes travel | mm | 610 | 500 | 500 |
| X/Z axes rapid moving speed | m/min | 24/24 |
| Y axes rapid moving speed | m/min | / | / | 8 |
| Tool turret | Tool turret type | / | 12T Hydraulic-servo tool turret | 12T BMT55 Powered tool turret | 12T BMT55 Powered tool turret with Y axes |
| Toolshank size | mm | 25×25, Φ40 | 25×25, Φ32(ER32) | 25×25, Φ32(ER32) |
| Tailstock | Tailstock quill taper | / | MT4# |
| Tailstock quill dia./travel | mm | Φ80/80 |
| Accuracy | Positioning accuracy(X/Z) | mm | 0.008/1000 |
| Repeat positioning accuracy(X/Z) | mm | ≤0.005 |
| Others | Overall size | mm | 2600×1800×1900 |
| N.W. | kg | 4000 | 4100 | 4200 |
Main parts list:
| Item | Brand |
| Spindle unit | TAIWAN-ROYAL |
| Tool turret | GERMANY-SAUTER/TAIWAN-YULIN/SWIFT |
| Ball screw | JAPAN-THK |
| Ball screw bearing | JAPAN-NSK |
| Linear guideway | JAPAN-THK |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Heat exchanger | Joint-venture |
| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration: - SIEMENS 808D ADVANCED CNC controller
- Hydraulic chuck
- Hydraulic-servo tool turret
- Hydraulic tailstock
Optional configuration: - SYNTEC/SIEMENS 828D/FANUC CNC controller
- C axes& powered tool turret
- Y axes
- Automatic chip conveyor
-Tool setting probe
