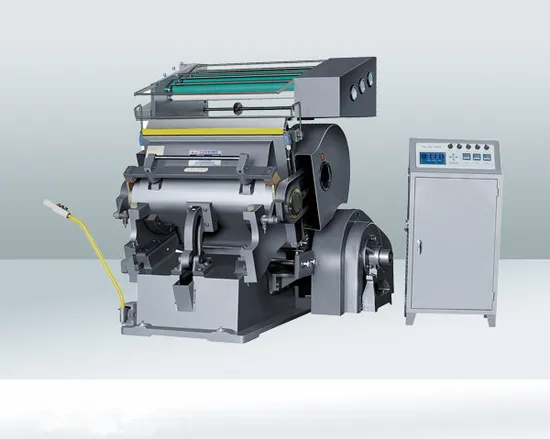

Semi-Automatic Creasing Machine with Hot Stamping (TYMK-750/TYMK-930/TYMK-1100)

Product Description

Main Features:
It is the latest generation product with high precision and high efficiency. It is major suitable ironing printing all assortments of multichromatic electrochemical aluminum. Pressing can cavo-convex trademarks, sampling advertisement, cartoon, book, cover, post card etc. Various senior decoration, printing matter. It is an ideal equipment for printing, packing decoration as well as plastic industry.
1. High strength due to one piece casting by using top-ranking material for machine body.
2. Single plate electromagnetic clutch is sensitive and reliable.
3. Computer controlled is stable.
4. Operation position is reasonably arranged, moving-bed can be opened to its optimum.
5. Skipping is accurate, so as to save foils.
6. With three functions of continuous creasing and cutting, opening dwell operation and closing dwell operation and a large dwell adjusting range.
7. Safety system is reliable.
8. The electrical part Adopts Switzerland ABB,France SCHNEIDER,Japan OMRON.
9. The machine has passed CE and ISO 9001.
10. The machine use automatic oil pump.
Main specification:

MODEL	TYMK-750	TYMK-930	TYMK-1100
Max.Platen Area Available	750×520mm	930×670mm	1100×800mm
Max.Stamping Area Availbale	660×480mm	930×640mm	1100×800mm
Times Of Max Skip	25 times	25 times	25 times
Working Pressure	150t	170t	220t
Foil-Delivered Length	520mm	640mm	800mm
Foil-Delivered Group	2Group	3Groups	3Groups
Working Speed	1600time/H	1320time/H	1200time/H
Main Motor Power	2.2kw	4kw	4kw
Total Power	7kw	13kw	16kw
Dimension	1750×1650×1850mm	1800×1900×2150mm	2180×2080×2150mm

---
