CNC 8mm 10mm 12mm 14mm 16mm 20mm 25mm Trapezoidal Lead Screw Self Reversing Threaded Rod Acme Screw with Brass Bronze POM Nut

Product Description

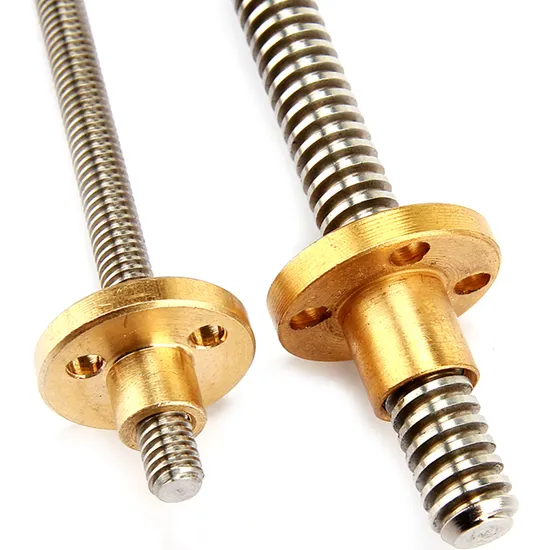

Product Description Trapezoidal lead screw and Nut
Trapezoidal lead screw is made of screw and T-nut. A trapezoidal lead screw is a type of mechanical screw that converts rotary motion into linear motion. It features a trapezoidal thread profile, which helps to provide better load distribution and efficiency in applications requiring linear movement. With little frication, Trapezoidal Screws are widely used into various industrial equipment and precision instruments.Here are some key points about trapezoidal lead screws:
Lead and Pitch: The lead (distance the nut moves with one full turn of the screw) and pitch (distance between threads) should be selected based on the required speed and force.
Material Selection: Depending on the application, materials like brass, stainless steel, carbon steel or Aluminum may be used for the screw and nut.
Lubrication: Proper lubrication is essential to reduce wear and enhance performance.
Application: The trapezoidal screw is commonly used in instrument-level applications that require smooth, precise, clean, and maintenance-free operation. The nut is usually made of internally lubricated polymer materials. The trapezoidal screw is also used in laboratory and life science equipment, such as DNA sampling equipment, scanning equipment and fluid handling equipment. Other applications include engraving, rapid prototyping, inspection and data storage devices. Alternatively, a sliding lead screw with a metal (usually copper) nut can be used for heavy-duty lifting.
We produce all types of standard or non-standard trapezoidal lead screws and nuts according to customer's request.
Detailed as following table:

Trapezoidal Screw Material	Stainless steel	Carbon steel	Alloy steel	Alloy steel
Screw Nuts Material	Stainless steel	Carbon steel	POM	Bronze/Brass/Copper
Regular Size	TR5/6/8/10/12/14/16/18/20/22/25/28/30/32/36/40/45/50,Other sizes mades to orders
Thread Direction	Right	Left	Right and Left
Manufacturing Process	Rolled Thread	Rolled Thread
Length	1000mm/Customized Length 100mm-3000mm
End machining Customized	Provided

15 YEARS MANUFACTURING AND EXPORTING EXPERIENCE OF LINEAR MOTION PRODUCTS
Established in 2009, Suzhou Weipeng Precision Machinery Co., Ltd. is located inSuzhou, a beautiful and dynamic city in eastern coast of China. We're a manufacturingcompany specialized in the production of hydraulic chrome plated piston rods, linear motion shafts and all lead screws, incuding ball screw and trapezoidal lead screw. In order to be a comprehensive supplier of linear motion parts, we expand our production and engage in mastering a variety of linear motion products, such as linear guide rail and blocks HG/EG/RG/MG series, dual axis wheel linear rail and cross roller guide and linear motion bearings, bronze bushings, as well as pinion and rack. We handle all souring and manufacturing activities and we have rich exporting experience and excellent after-sales service. We build long-term cooperation with clients in more than 60 countries and regions worldwide. We provide OEM /ODM services as well. FAQ Q1: Are you a manufacturer?
Yes, we have been in manufacturing and providing excellent linear motion parts for customers more than 12 years.
Q2: How long could you prepare samples?
Ans:Normally 1days if we have the sample onhand.lf customized one,about a week around.
Q3: How about batch order production?
Ans: Normally 30days or so for one container.
Q4: Do you inspect the finished products?
Ans:Yes, we will do inspection according to lSO standard and ruled by our QC staff.
Q5: How do you ship the goods?
Ans: By sea, by air by truck or by courier (UPS/DHL/Fedex/TNT etc.)
Q6: What advantage do you have?
Ans:
1.We have professional engineers,customers can expect the best possible advice and support.
2.Related responsible team to answer all your questions and follow-up process for you and do update in time.
3.Strict and standard process control according to Quality Management System.
4.Documents support on products, we have strong technical data sheet to support our products, which could make you easier to know our products.

---
