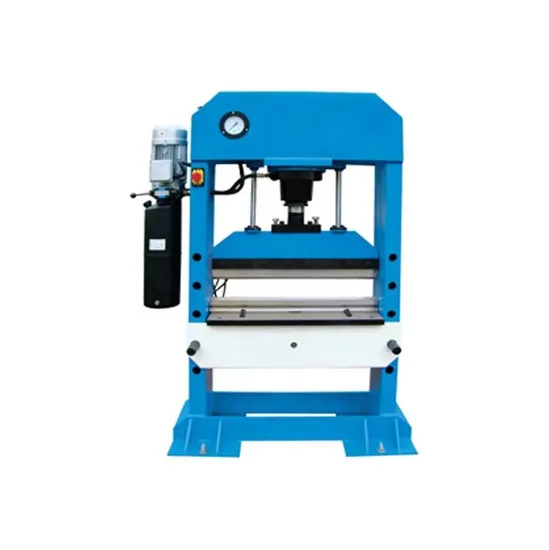

Hpb-580 Hydraulic Press Brake for Thick Plate Bending, 30 Ton X 580 mm Hydraulic Workshop Press Brake

Product Description

It is fitted with heavy duty top and bottom press brake tools, which makes light work of the heavier bending, forming, pressing and straightening operations you need to undertake
Features:
300 KN Pressure heavy H frame design Hydraulic Press Top & bottom press brake tooling Safe working speed Quiet hydraulic system Stepless pressure adjustment Hydraulic cylinder mounted above tooling providing vertical pressure Twin guidance pistons in addition to the main ram Stepless stroke adjustment with limit switches controlling the ram stroke and return Adjustable bed height with two hardened pins Control console with two handed operation Ideal for low or high volume operation
Parameters:

Model	HPB-580	HPB-790	HPB-1010	HPB-1500	HPB-2000
Capacity (kn)	300	500	1000	1500	2000
Pressure (mpa)	25	25	30	30	30
Piston travel Table travel (mm)	300 270	220 405	250 405	250 405	300 405
Table size (mm)	300x400	400X800	460x980	460x980	500x1000
Dimension (cm)	120x55x168	143x65x197	175x75x220	175x72x220	194x80x225
Hydraulic Station (cm)	-	-	73x63x96	73x63x96	98x80x106
N.W./G.W. (kg)	283/340	578/650	1278/1372	1240/1635	1912/2006

Chizhou Jingyi Electromechanical is a professional machinery manufacturing service provider. The factory has a full range of shears, saws, lathes and other processing equipment. The product styles are complete. The products are made of high-quality materials and advanced processing technology. The quality is guaranteed. All products can provide good training and technical services. Welcome new and old customers to inquire.

---
