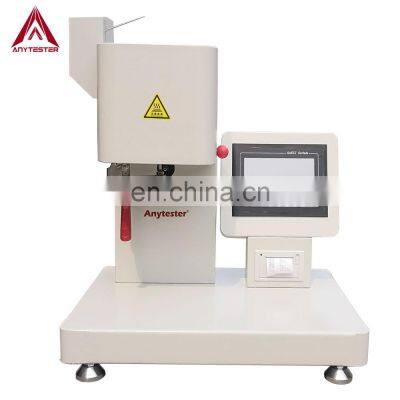

AT430E Melt Flow Index Tester is used to measure the melt flow rate (MFR) of engineering plastics including polyethylene (PE),
polyarylsulfone, fluro-plastic, nylon, polystyrene, polypropylene ABS resins, and POM resins. It can also measure the melt volume
rate (MVR) of various high polymers whose melt volume rate is between 500cm3/10min~1000cm3/10min in the melt flow state, such as melt bow materials of polypropylene or other nanofiber materials. It is widely used industries of plastic production, plastic
products, and petroleum chemical engineering and other relative academies, scientific research institutes and quality control
departments.
Standard
|
|
|
ISO 1133-1
| ASTM D1238
| GB/T 3682-2000
|
ISO 1133-2
| JB/T 5456
|
|
Features★ High-precision and quick-response displacement sensor, resolution up to 1um, accurate data acquisition, rapid and reliable;
★ Temperature acquisition unit adopts 24-bit high-precision analog-digital converter, accurate and reliable temperature
acquisition and temperature resolution up to 0.01℃；
★ Quick heating, precise temperature-holding, short time to restore temperature after feeding material in 2 min;
★ Dual PID segmental heating to precisely and reasonably control the heat distribution in the cylinder, ensuring the temperature
evenness of cylinder within ±0.3℃；
★ Data-acquisition time interval in millisecond to capture the displacement change of material in high speed and accurately
measure the high melt flow rate up to 2500cm3/10min;
★ 7-inch Color touch screen to control terminals, with switchable Chinese-English language display, convenient to use;
★ Professional software to control temperature automatically, automatically cutting material, real time display test curve,
mini-printer to printout test data;
★ Automatic identification of the effective measurement zone according to GB standard, ISO standard and ASTM standard;
★ Controlling software can carry out the setting of test parameters, the controlling of temperature, calibration, timing, the
measurement of MVR in a specific time and automatic calculation of MFR after inputting the density;
★ Storage capacity to save test data can store up to eight groups of test parameters and save test data in the portable storage
device;
★ Optional PC software to process data and create test report;
★ Stopper for the die adopts lever-linking type drive mechanism, precise positioning, reliable sealing and easy operation.
Model
| AT430E
|
Measuring range
| (0.01~200)g/10min for MFR
(500~2500)cm3/10min for MVR
|
Temperature range
| 50℃~450℃
|
Temperature error
| ≤±0.2℃
|
Temperature fluctuation
| ≤±0.2℃
|
Temperature resolution
| 0.01℃
|
Temperature recovery time
| ≤4 min
|
Display mode
| Touch screen operation
|
Timing accuracy
| 0.1s
|
Temperature evenness of cylinder
| ±0.3℃
|
Displacement resolution of piston
| 0.002mm
|
Displacement error of piston
| ≤±0.02mm
|
Standard die
| Tungsten carbide, Φ2.095±0.005mm
|
Height of standard die
| 8.000±0.020mm
|
Inner diameter of feed cylinder
| Φ9.550±0.025mm
|
Diameter of piston
| Φ9.475±0.015mm
|
Length of piston head
| 6.350±0.100mm
|
Weight mass maximum error
| ≤±0.3%
|
Power
| AC220V 50Hz, 0.5kVA
|
Dimensions
| 550×430×650mm (L×W×H)
|
Weight
| Approx. 62kg
|
