Clear Pet Plastic Smoothie Takeaway Milkshake Cup Yogurt Jelly Ice Cream Cup Making Machine

Product Description

1300 tonTakeaway Milkshake Cup Yogurt Cup Manufacturing Machine
Product Description

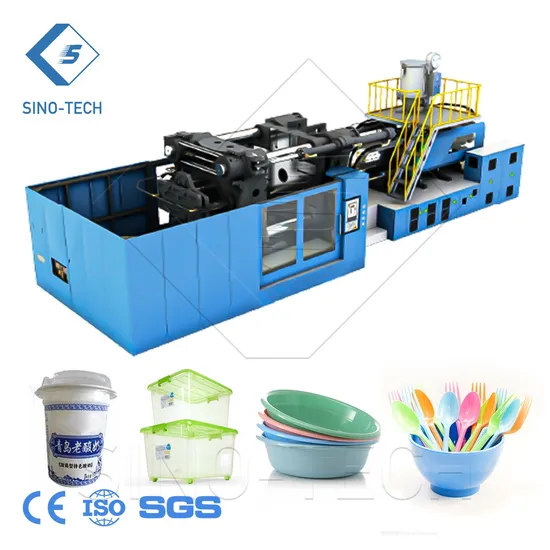

SINO-TECH ST-1300JSell injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-1300JSell with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features
1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 1600Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

Item		1300JSell
Screw diameter	mm	100	110	125
Theoretical shot volume	cm³	3848	4657	6013
Shot weight (PS)	g	3646	4191	5412
Length/Diameter ratio	L/D	22.3	20.0	17.7
Injection pressure(high pressure and low speed)	MPa	215	178	138
Injection pressure(low pressure and high speed	MPa	156	129	100
Injection rate(high pressure and low speed)	cm³/sec	671	812	1048
Injection rate(low pressure and high speed)	cm³/sec	925	1119	1445
Plasticizing capacity (PS)	g/s	93	118	154
Injection stroke	mm	557
Screw speed	rpm	105
Injection unit force	Ton	20.0
Carriage stroke	mm	1000
Clamping force	Ton	1300
Opening force	Ton	139.6
Opening force	Ton	42.9
Max. daylight	mm	2800
Clamping stroke	mm	1500-2200
Distance btwn. Tie bars	mm	1410*1260
Min mould dimension	mm	980*880
Mould thickness range	mm	600-1300
Ejector force	Ton	25
Ejector stroke	mm	350
No. of ejector pins	unit	29
Dry Cycle(Euromap 6)	S	6.8
Major motor	kW	132.5
System pressure	MPa	17.5 22.6
No. of heater zones	unit	5+1
Heater input power	kW	87
Ultimate capacity	kw	220.5
Current	A	268.0
Net weight	Ton	58
Oil filling capacity	L	2300

Detailed Photos

Application

Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
