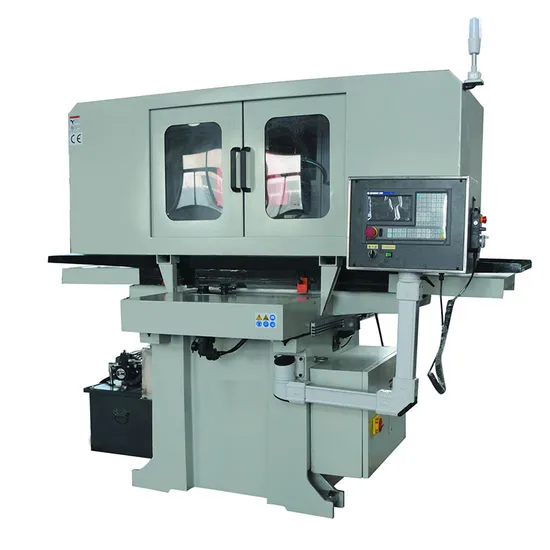

bench grinder MK1024 3 axis CNC surface grinding machine from China

Product Description

Product Description
Surface Grinding Machine Main Features:
1.Having reasonable structure, high rigidity, good looking and operating easily.
2.Transverse movement (front and rear) of work table is driven by servo motor and transmitted by Precision ball screw which can ensure precision, accurate positioning, automatic feed and fast forward and rewind functions.
3.Longitudinal movement (left and right) adopts a flat-type rail guideand controlled by servo motor
4.Vertical movement is transmitted by precision shaped screw and driven by servo motor which can ensure precision, accurate positioning, automatic feed and rapid up and down function.
5.Adopting SIEMENS CNC SYSTEM which has high degree of automation.

Specification		Unit	MK1022	MK1024	MK1224	MK4080
Max. workpiece to be ground(L*W*H)		m	520*250	630*250	650*300	800*400
Max. travel of table(L*W)		m	560*260	650*250	670*320	850*450
Table maximum cutting area(L*W)		m	500*250	630*250	600*300	800*400
Number of T-Slot		mm	1*14	1*14	1*14	1*14
Distance from table surface to spindle center		mm	450	450	490	580
Wheel size(dia *width*bore)		mm	200*20*φ31.75	200*20*φ31.75	300*30*φ75	350*40*φ127
Spindle speeds(50HZ)		r/m	2850	2850	1440	1440
Table longitudinal (left and right) speed (stepless)		m/min	3~20	3~20	3~20	6~20
Table horizontal(before and after)the amount of feed	Continuous(variable speed)	mm/min	150	150	150	150
	Intermittent(stepless)	mm	0-5	0-5	0-5	0-5
	The handwheel rotates	mm	4	4	4	4
	Hand wheel each grid	mm	0.02	0.02	0.02	0.02
Vertical(up and down)feed wheel feed	The handwheel rotates	mm	2	2	2	2
	Handwheel each grid	mm	0.01	0.01	0.01	0.005
Spindle motor		kw	1.5	1.5	4	5.5
Cooling motor		w	40	40	40	90
Hydraulic motor		kw	1.5	1.5	1.5	2.2
Working pressure		Mpa	3	3	3	3
Oil tark capacity		L	80	80	80	100
Max. capacity		L/min	18	18	18	18
The machined surface of the base of parallelism		mm	300/0.004	300/0.004	300/0.004	300/0.004
Surface roughness		μm	Ra0.32	Ra0.32	Ra0.32	Ra0.32
Net weight		T	1200	1300	1400	2000
Cross		T	1300	1400	1500	2200
Packing size(L*W*H)		mm	1800*1400*2000	1800*1400*2000	2000*1800*2050	2300*1980*2170

Company Profile

FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
