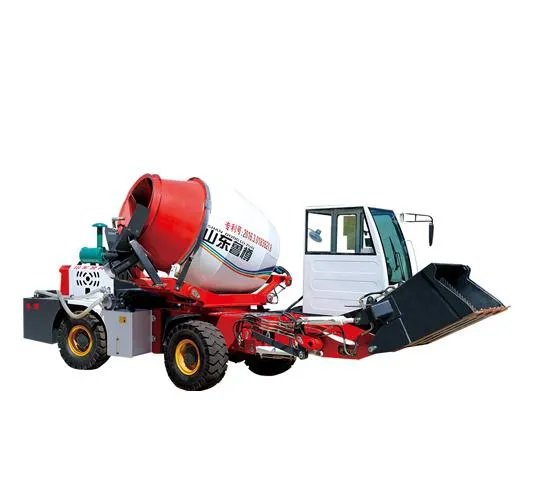

China Hot Sale 5 Cubic Hydraulic Self Loading Concrete Mixer for Sale

Product Description

China hot sale 5 cubic hydraulic self loading concrete mixer for sale Product Description

DIESEL ENGINE
Model: YCD4J22G
Total displacement, no Cylinders: 4330cc-4 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 85Kw(116Hp)
Max. torque: 390Nm@2800rpm
ELECTRIC SYSTEM
Alternator:28V--1500Wa (53.5A)
Battery: 2×12V--100AH (453A)
Road light system, rear working lights.
STEERING
Articulated Steering by two cylinders move alternately.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
4X4 FOUR-WHEEL DRIVE
hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
Speed:2 forward gears 2 reverse gears
Ist 0 - 7.0 Km/h 0 - 7.0 Km/h
IInd 7-20 Km/h 7 - 20 Km/h
Product Parameters

Model	YCD4J22G
Max. power	85Kw
Max. torque	390Nm@2800rpm
Alternator	28V--1500Wa
Max. capacity	90 liters/min
Geometrical drum volume	4650 liters
Tank volume	5.5m³
Volumetric capacity	500 liters
Fuel tank	200 liters
Operating weight	7100 kg
Length × Width × Height	6830 × 2800 × 3200 mm
