US$109,000.00-49,900,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification

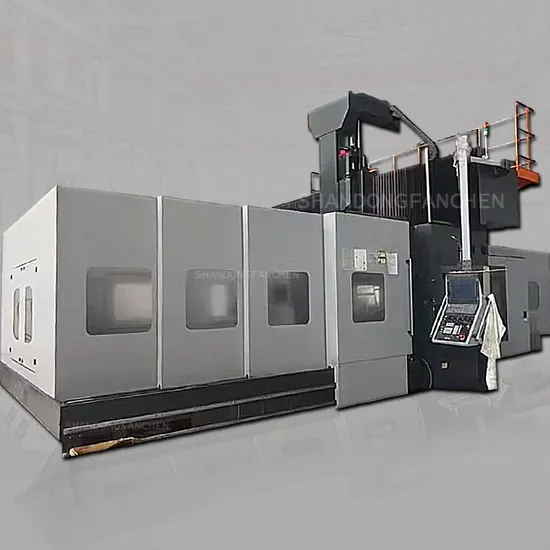

Five-Axis Gantry Machining Center
Certification
GS, CE, ISO 9001
Bed Dimension
2500/1600mm
Maximum Load-Bearing of The Workbench
8000kg
Maximum Stroke of Axis
2500mm
Ymaximum Travel of Y Axis
1800mm
Zmaximum Trip on The Z Axis
800mm
Maximum Power of The Spindle Motor
15/18.5kw
Fast Feed Rate
20000mm/Min
Maximum Cutting Speed
10000mm/Min
Positioning Accuracy
0.01mm
Pressure Pressure Demand
66kg/Cm2
Oil Pressure Box Capacity
Hydraulic Pressure Station
Specification
5000/3800/2500mm
Packaging & Delivery
Package Size
500.00cm * 380.00cm * 250.00cm
Package Gross Weight
23000.000kg
Product Description
| Content | Name | Specifications and modelsGMB2518 | Specifications and modelsGMB2525 |
| Workbench | Bed dimension | 2500 X 1600mm | 2500 X 1600mm |
| Maximum load-bearing of the workbench | 8000kg | 8000kg |
| Range of work | X/Maximum stroke of axis | 2500mm | 2500mm |
| Y/Maximum stroke of axis | 1800 mm | 1800mm |
| Z/Maximum stroke of axis | 800 mm | 800 mm |
| Principal axis | Range of speeds;range of speeds of rotation | 6000 r/min | 6000r/min |
| Maximum power of the spindle motor | 15/18.5 kw | 15/18.5 kw |
| Spindle taper | BT50/160 | BT50/160 |
| Distance from spindle nose to workbench | 200-1000 mm | 200-1000 mm |
| Distance between two columns | 1900mm | 1800mm |
| Spindle transmission form | Gear type | Gear type |
| Rapid feed | Fast feed rate | X-axis 20000mm/min | X-axis 20000mm/min |
| Y-axis 20000mm/min | Y -axis 20000mm/min |
| Z-axis 20000mm/min | Z-axis 20000mm/min |
| Maximum cutting speed | 10000 mm/min | 10000 mm/min |
| positioning accuracy | X/-axis | 0.025 mm | 0.025 mm |
| Y/-axis | 0.020 mm | 0.020 mm |
| Z/-axis | 0.015 mm | 0.015 mm |
| Repeat positioning accuracy | X/-axis | 0.008 mm | 0.008 mm |
| Y/-axis | 0.008 mm | 0.008 mm |
| Z/-axis | 0.008 mm | 0.008 mm |
| Electricity demand | | 60KVA | 60KVA |
| Pressure pressure demand | | 66kg/cm2 | 66kg/cm2 |
| Oil pressure box capacity | | Hydraulic pressure station | Hydraulic pressure station |
| Lubricating oil box capacity | | 6 l | 6 l |
| Cutting liquid capacity | | 550 l | 550 l |
| Machine dimensions | | 5000/3800/2500mm | 6000/4200/3000mm |
| Machine tool weight | 23T | 23T |
FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
