Basic Info.
Processing Accessory

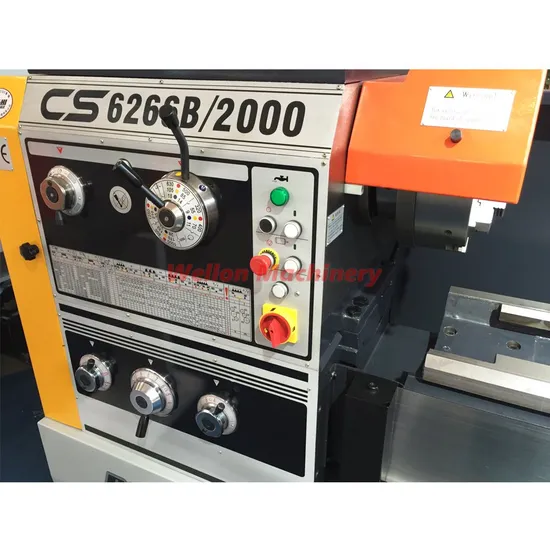

Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Controlling Mode
Artificial
Certification
GS, CE, ISO 9001
Max. Swing Dia. Over Bed
660
Max. Swing Dia.in Gap
870
Max. Swing Dia. Over Slides
420
Spindle Bore Diameter
105
Specification
CE ISO900 rohs
Production Capacity
30 PC/Month
Product Description
Detailed Photos
Product Parameters
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
| SPECIFICATIONS | UNIT | CS6266C |
| Capacity | Max. swing dia. over bed | mm | 660 |
| Max. swing dia.in gap | mm | 870 |
| Max. swing dia. over slides | mm | 420 |
| Max. workpiece length | mm | 1000/1500/2000/3000 |
| Bed width | mm | 400 |
| Spindle | Spindle bore diameter | mm | Φ105 |
| Type of spindle nose | no | ISO 702/II NO.8 com-lock type |
| Spindle speed | rpm | 12 steps 36-1600 |
| Spindle motor power | KW | 7.5 |
| Tailstock | Diameter of quill | mm | 75 |
| Max. travel of quill | mm | 150 |
| Taper of quill (Morse) | MT | 5 |
| Turret | Tool O.D. size | mm | 25X25 |
| Feed | Max. X travel | mm | 145 |
| Max. Z travel | mm | 310 |
| X feed range | mm/r | 65 kinds 0.063-2.52 |
| Z feed range | mm/r | 65 kinds 0.027-1.07 |
| Metric threads | mm | 22 kinds 1-14 |
| Inch threads | t.p.i | 25 kinds 28-2 |
| Module threads | πmm | 18 kinds 0.5-7 |
| Diametricpitch threads | t.p.i.π | 18 kinds 0.5-7 |
| Others | Length | mm | 4800 |
| Width | mm | 1150 |
| Height | mm | 1880 |
| Weight | kg | 2600 |
Standard Accessories :
Optional Accessories :
| Live center |
Quick change tool post
(One body, 4 holders) |
| 2 axis Digital readout/1000mm |
| Thread chasing dial |
| Tapper turning attachment |
| Chuck guard |
| Tool post guard |
