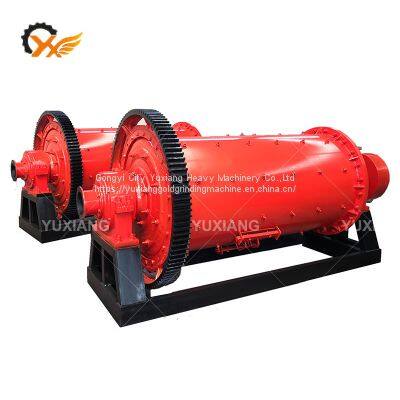

Overflow Type Ball Mill , Small Ball Mill , Ball Mill Price
Product Description
Ball mill is an efficient tool for grinding many materials into fine powder, it is widely used in building material, and chemical industry,can be divided into tabular type and flowing type according to different expelling mine ,There are two ways of grinding: the dry way and the wet way. It also named as rod mill.
Working Principle
>Working principle of Ball mill<
The Energy-Saving Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of casting steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height
and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Specification
Model
| Speed of bucket(r/min)
| Ball load(t)
| Feeding size(mm)
| Size of outputting(mm)
| Capacity(t/h)
| Motor Power(kw)
|
900*1800
| 36-38
| 1.5
| ≤20
| 0.075-0.89
| 0.65-2
| 18.5
|
900*3000
| 36
| 2.7
| ≤20
| 0.075-0.89
| 1.1-3.5
| 22
|
1200*2400
| 36
| 3
| ≤25
| 0.075-0.6
| 1.5-4.8
| 30
|
1200*3000
| 36
| 3.5
| ≤25
| 0.074-0.4
| 1.6-5
| 37
|
1200*4500
| 32.4
| 5
| ≤25
| 0.074-0.4
| 1.6-5.8
| 55
|
1500*3000
| 29.7
| 7.5
| ≤25
| 0.074-0.4
| 2-5
| 75
|
1500*4500
| 27
| 11
| ≤25
| 0.074-0.4
| 3-6
| 110
|
1500*5700
| 28
| 12
| ≤25
| 0.074-0.4
| 3.5-6
| 130
|
1830*3000
| 25.4
| 11
| ≤25
| 0.074-0.4
| 4-10
| 130
|
1830*6400
| 25.4
| 15
| ≤25
| 0.074-0.4
| 4.5-12
| 155
|
1830*7000
| 24.1
| 21
| ≤25
| 0.074-0.4
| 6.5-15
| 210
|
2100*3000
| 24.1
| 23
| ≤25
| 0.074-0.4
| 7.5-17
| 245
|
2100*4500
| 23.7
| 15
| ≤25
| 0.074-0.4
| 6.5-36
| 155
|
1830*4500
| 23.7
| 24
| ≤25
| 0.074-0.4
| 8-43
| 245
|
2100*7000
| 23.7
| 26
| ≤25
| 0.074-0.4
| 8-48
| 245
|
2200*4500
| 21.5
| 27
| ≤25
| 0.074-0.4
| 9-45
| 280
|
2200*6500
| 21.7
| 35
| ≤25
| 0.074-0.4
| 14-26
| 380
|
2200*7000
| 21.7
| 35
| ≤25
| 0.074-0.4
| 15-28
| 380
|
2200*7500
| 21.7
| 35
| ≤25
| 0.074-0.4
| 15-30
| 380
|
2400*3000
| 21
| 23
| ≤25
| 0.074-0.4
| 7-50
| 245
|
2400*4500
| 21
| 30
| ≤25
| 0.074-0.4
| 8.5-60
| 320
|
2700*4000
| 20.7
| 40
| ≤25
| 0.074-0.4
| 12-80
| 400
|
2700*4500
| 20.7
| 48
| ≤25
| 0.074-0.4
| 12-90
| 430
|
3200*4500
| 18
| 65
| ≤25
| 0.074-0.4
| Depend on the process
| 800
|
Notes: The ratio of cylinder length to diameter of rod mill is generally 1.5-2.0, and the inner surface of liner plate on end cover is vertical plane.The model is named as the length and diameter of the barrel. More details as follows:
Features:
1.It is an efficient tool for grinding many materials into fine powder.
2.Two ways of grinding: the dry way and the wet way.
3.Ultimate particle size depends entirely on how hard the material you’re grinding is.
4.Easy operation and maintenance
Grinding Medium:
The steel balls are in point contact with each other, and the steel rod of rod mill is in line contact with each other.
Medium Filling Rate:
Medium filling rate refers to the grinding medium percentage in the mill volume. For different grinding methods, mill structures,medium shapes and operating conditions, the medium filling rate has a available range. Generally, the filling rate of ball mill is 40% – 50%, and that of rod mill is 35% – 45%.
>>Professional Team<<
Gongyi City Yuxiang Heavy Machinery Co.,Ltd has professional technical team.They can make drawings by Auto CAD or 3D Solidworks.When customer has special request,our technical department can structure the machine in 3D format to simulate the working condition.In this way,we can remove the interfere items in advance.And we have the complete installation instructions about all of our machine.In this way,the customer can have all machines ready to produce soon even they are not familiar with this machine or first order from us.
Company Profile
Gongyi Yuxiang Heavy Machinery Factory has been established for more than 20 years. It is a large and medium-sized heavy machinery manufacturing co., LTD., which integrates r&d, manufacturing and sales. Since its establishment, the use of scientific modern enterprise management methods, excellent product quality and perfect after-sales service, set up a good image at home and abroad.
Our products include crusher series, grinding machine series, drying machine series, charcoal machine series, carbonization furnace series, granulator series. It is widely used in mining, building materials, metallurgy, chemical industry, communications,water conservancy and other industries. Our products are not only sold to more than 20 provinces, cities and autonomous regions, but also exported to more than 10 countries and regions such as Eastern Europe, Middle East, Asia, Africa, North America, SouthAmerica and Oceania.
>>
