Waste to Energy Municipal Solid Waste Gasification Gas Generator Power Plant

Product Description

Waste to Energy Municipal Solid Waste Gasification Gas Generator Power Plant Civil municipal solide waste(MSW) can be used as feedstocks, through incomplete combustion in furnace produce combustible gas which the main ingredient is carbon monoxide, after necessary purification gas sent to gas generator set to generate electricity.
MSW gasification system mainly consists of MSW gasification, gas purification and gas power generation. Power from 300kW-3000kW. MSW is fed into the gasification furnace continuously and reacts with gasification agent to produce gas.The gas is cooled and purified through purification system. Clean gas flow into interal combution generator to produce electricity, the MSW is efficiently converted into electricity.
Gas Quality Suggested
Gas temperature≤40ºC Gas pressure 2.5~10kPa Pressure change rate≤1kPa/min Calorific value ≥ 4.0MJ/Nm3 Moisture content≤40g/Nm3, no free water Impurity content≤30mg/Nm3 Impurity size≤5μm Tar content≤50mg/Nm3 H2S≤50mg/Nm3 Total sulfur≤100mg/Nm3 NH3≤20mg/Nm3 Cl≤50mg/Nm3 H2≤50% O2≤1% Gas Generator Specification

	Item	Technical specification
Engine	Model	6300D/M	6300D/M-1	8300D/M-1	8300D/M-2	8300D/M-3
	Type	Inline, water cooled, four stroke, spark plug ignition
		Non-turbocharged
	Cylinder number	6		8
	Cylinder diameter (mm)	300
	Rated speed(r/min)	500	600	500	600	600
	Rated power (kW)	400	440	500	550	660
	Rated thermal consumption(MJ/kW·h)	≤11.0
	Rotate direction (From flywheel)	Clockwise
	Start mode	Compressed air/motor start
	Exhaust temperature (ºC)	≤600
	Oil consumption(g/kW·h)	≤0.8

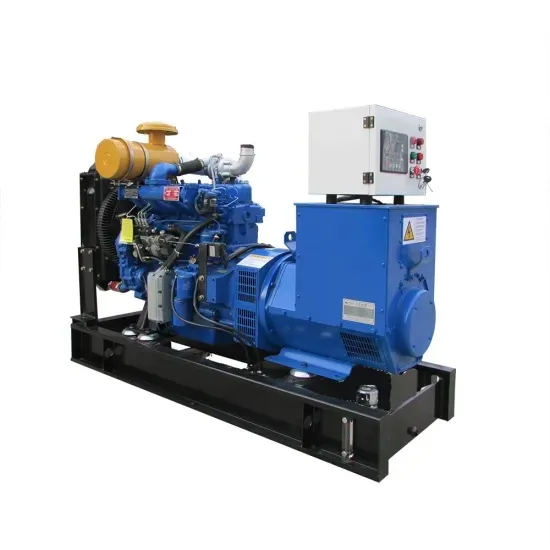

Generator set	Type	350GFM	400GFM	450GFM	500GFM	600GFM
	Rated power(kW)	350	400	450	500	600
	Frequency(HZ)	50
	Voltage(V)	400/6300/10500
	Current(A)	631/40/24	722/46/28	812/52/31	902/57/34	1083/69/41
	Power factor (COSΦ)	0.8 (Lagging)
	Phase and connecting	3phases 4wires /3phases 3wires
	Dimension (L×W×H) (mm)	5800×1600×2900		6400×1600×2900
	Weight(kg)	18000		22000

Gas Generator Technical Features
▪ Non-turbocharged naturally aspirated gas intake, double layer gas intake system with high tar tolerance.
▪ Intake valve kit is removable for easy maintenance.
▪ External or internal mixing system can be selected according to gas hydrogen content.
▪ Adapt to low calorific value gas with high hydrogen content.
▪ High degree of automation, high safety and low operating cost.
Why Zichai Gas Generator Set?
1. Development and manufacturing internal combustion engine since 1970
2. Factory area over 330000m2 & over 2200 employees
3. Highly versatile power generator with ability to handle more than 20 different gases
4. More than 200 employees dedicated to developing and improving power generator for various gas.
5. More than 1000 systems installed in over 20 countries using a variety of gases.
6. More than 50 people in the Customer Service Department making the Organization very Customer Responsive.
Project References
Customer
FAQ
1.Are you a trading company or manufacture?
Manufacture with factory.
2.What kinds of gas generator set do you produce?
It covers for all kinds of gas produced in agriculture and industry, including biomass gas, biogas, natural gas, coal mine gas, coke oven gas, semi-coke gas and syngas, as well as related gas produce equipment.
3.What is your delivery time?
Normally within 60days, it depends on the configuration and quantity, please confirm with us before order.
4.What is your payment terms?
T/T or L/C.
5.How do you pack products?
Standard export packaging. Equipment packing with plastic bag, and with new solid wooden box, suitable for long-distance sea transportation, moisture-proof, earthquake, rust-proof and anti-brutal handling.
6.What is your available port of shipment?
Normally Qingdao port, other ports available according to customers' requirement.

---
