Product Details
Product Description
Product Description

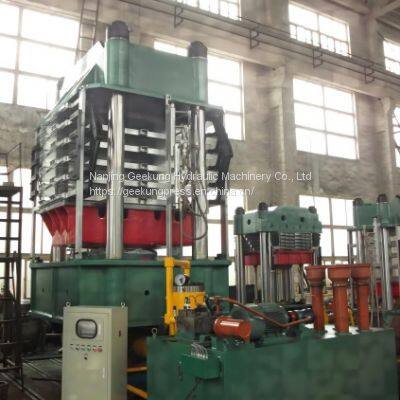

he foam vulcanizing press is used for molding and foaming of EVA, PE,TPE,EPDM SBR,CR ,the foam sheets are widely used in shoe material manufacturing, foam floor, EVA mat,EVA puzzle,thermal insulation material, luggage liner, sporting buffer material, diving dress material and life vest material, etc.
Features for EVA Rubber&Plastic Foaming Press machine:
1) It is suitable for different kinds of polymer material foaming
2)The foaming machine is designed with strong structure to meet the foam production
3)It has a excellent pressure retaining system to ensure the pressure stable during
the molding&foaming process.
Main technical parameters:
No.
| Model
| Clamping
force
| Platen size
| Daylight Opening
| Daylight
(Layers)
| Distance between columns
| Motor power
|
Ton
| mm
| mm
| mm
| KW
|
1
| GKF-350T
| 350
| 800*1000
| 150
| 4
| 1000
| 7.5
|
2
| GKF-500T
| 500
| 900*1200
| 150
| 4
| 1300
| 11
|
3
| GKF-700T
| 700
| 1100*1350
| 150
| 6
| 1400
| 15
|
4
| GKF-900T
| 900
| 1200*1500
| 150
| 6
| 1600
| 15
|
5
| GKF-1000T
| 1000
| 1300*1500
| 150
| 6
| 1600
| 22
|
6
| GKF-1100T
| 1100
| 1350*1700
| 170
| 6
| 1800
| 22
|
7
| GKF-1350T
| 1350
| 1350*1800
| 180
| 6
| 1800
| 22
|
8
| GKF-1500T
| 1600
| 1350*2000
| 180
| 6
| 1800
| 22
|
9
| GKF-1600T
| 1600T
| 1400*2250
| 200
| 6
| 1980
| 30
|
10
| GKF-1800T
| 1800T
| 1400*2400
| 180
| 6
| 2000
| 30
|
11
| GKF-2200T
| 2000T
| 1400*2600
| 200
| 6
| 2000
| 37
|
Notes: the table only list out the normal standard models, more special models can be customized to order.
>>
