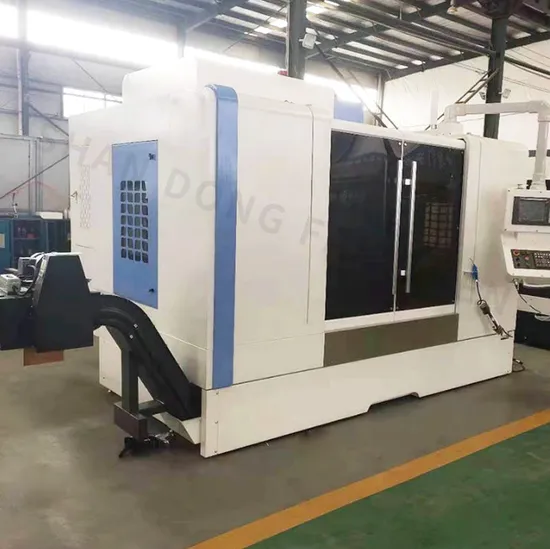

Vmc1580 1690 Vertical Machining Center Three Line Rail High Precision CNC Machine Tool

Product Description

project	unit	VMC1580
X axis itinerary	mm	1500
Y axis itinerary	mm	800
Z axis itinerary	mm	700
Number of workbench	pcs	1
Distance from spindle end face to workbench center	mm	140-840
Distance from spindle center to worktop	mm	860
Spindle speed	rpm	6000
Spindle power	KW	18.5
Spindle taper		BT40-190 / BT50
Workbench area	mm	1700×800
Maximum load of the workbench	kg	1500
T-type slot size	mm	5-22
X-axis rapid displacement	m/min	18
Y-axis rapid displacement	m/min	18
ZZ-axis rapid displacement	m/min	12
Cut into give speed	mm/min	1-6000
Controller system		Siemens
X / Y / Z guide rail form		Three axis rail
X / Y / Z ball guide rail	mm	45/45/45
Tool magazine form		Disk tool magazine
tool magazine	pcs	24
Tool change time	s	2.5
Accuracy detection standard		JISB6336-4:2000/GS/T 18400.4-2010
X / Y / Z axis accuracy	mm	±0.01
Repeat positioning accuracy of the X / Y / Z axis	mm	±0.005
machine weight	Kg	10000(±5%)
Outer dimension of the machine tool (length, width and height)	mm	3800×2700×2950

Optional

Spindle	Electric spindle 18000-24000 turn with turning function
Tool magazine	Disk 24 tool magazine
Rotating platform	The fourth axis of the platform Cradle turn Cradle with turning function transfer table
Controller system	KND Siemens 840 Fanuc Mitsubishi Syntech GSK( China Guangzhou Digital) /H N C( Central China Central China)

FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
